  9. Square Milling Insert, 12.70mm, Carbide

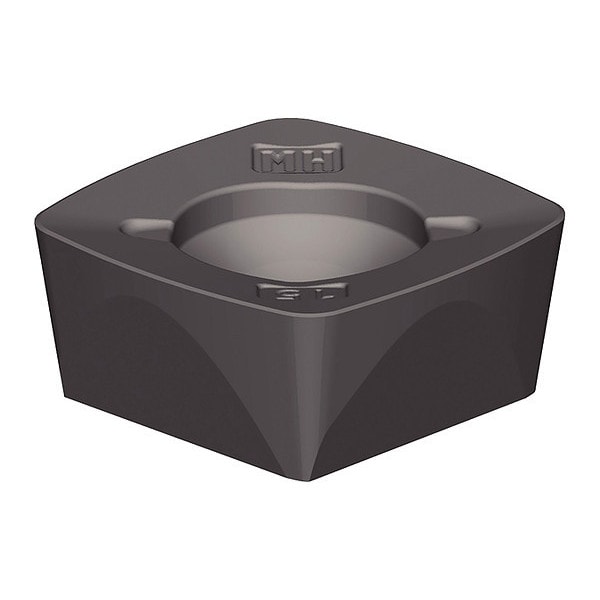

Widia Square Milling Insert, 12.70mm, Carbide XDPT120515SRMH - main

Square Milling Insert, 12.70mm, Carbide

  • Mfr # XDPT120515SRMH

  • Zoro # G3796254

product price: $19.29
/ea
Sold in multiples of 5 for $96.45

Key Features

Insert Size
120515
Grade
WP40PM
Mounting Hole Dia.
0.2126 in
Series
VXF
Stainless (M) Compatibility
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XDPT120515SRMH
Zoro #
G3796254
UPC #
4061779078948
Country of Origin
United States

Dimensions

Insert Size
120515
Mounting Hole Dia.
0.2126 in
Insert Thickness
0.2188"
Cutting Edge Length
12.70mm
Thickness
0.2188 in
Through Hole Inside Dia.
0.2126 in
Corner Radius
1.50mm

Details

Grade
WP40PM
Item
Square Milling Insert
Series
VXF
Stainless (M) Compatibility
No
Cutting Direction
Right Hand
For Use With
VXF-12 Series High-Feed Mills
Non Ferrous (N) Compatibility
No
Mounting Style
Taper Screw
Insert Style
XDPT
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Insert Material
Carbide
ISO Number
XDPT120515SRMH
Cast Iron (K) Compatibility
No
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
No
Insert Shape
Square
Workpiece Compatibility
Steel (P)
Hardened (H) Compatibility
No
Finish - Machining
AlCrTiN
Insert Holding Type
Taper Screw
Secondary Material Application ISO Code
S
Material - Machining
Carbide
Chip-Breaker Style
On One Side
Manufacturer Grade
WP40PM
ANSI Code
XDPT120515SRMH
Wiper Insert
Yes
Primary Material Application ISO Code
M, P
Secondary Material Application
Nickel, Titanium
Coating Process
PVD
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Primary Material Application
Stainless Steel, Steel
Measurement System
Fractional Inch
Number of Cutting Edges
4
Clearance Angle
9 Degrees
Cutting Application
Milling
Chip-Breaker Code
MH
Shape
Square
Included Angle
90 Degrees

Description

Square Milling Insert, Inscribed Circle 1/2 in

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
