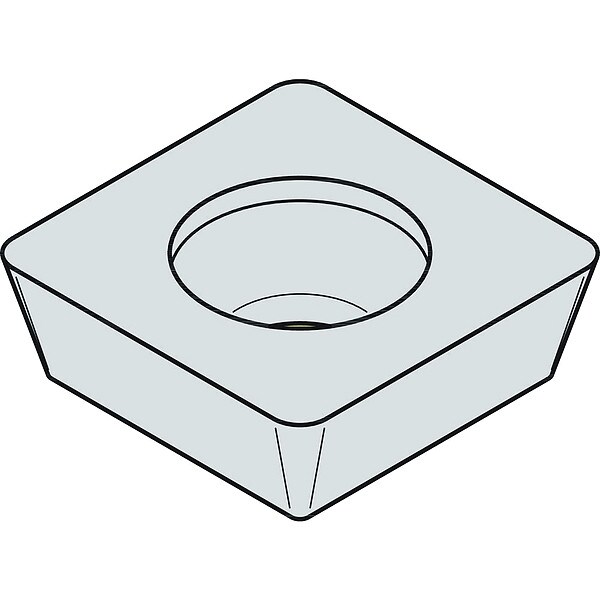

Square Milling Insert
Mfr # SDMW322 WP35CM
Zoro # G310369474
product price: $13.49
/eaSold in multiples of 5 for $67.45
Key Features
Insert Size
322
Inscribed Circle
0.375 in
ISO Number
SDMW090308
Insert Style
SDMW
Lead Angle
45 Degrees
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SDMW322 WP35CM
Zoro #
G310369474
UPC #
4064182709218
Country of Origin
Germany
Dimensions
Insert Size
322
Thickness
0.1252 in
Cutting Edge Length
0.3750 in
Details
Inscribed Circle
0.375 in
ISO Number
SDMW090308
Insert Style
SDMW
Lead Angle
45 Degrees
Item
Square Milling Insert
For Use With
M25 Series Chamfer Mills
Number of Cutting Edges
4
Features
Large Chip Gash to Ef¿ciently Evacuate Chips from Heavy Duty Applications
Clearance Angle
15 Degrees
Shape
Square
ANSI Code
SDMW322
Cutting Application
Counter-Sinking/Stroke Chamfering, Eased Chamfer Side/Shoulder Milling
Finish - Machining
TiN+TiCN+Al2O3
Coating Process
CVD
Secondary Material Application
Cast Iron, High-Temperature Alloy
Material - Machining
Carbide
Secondary Material Application ISO Code
K, S
Manufacturer Grade
WP35CM
Primary Material Application
Stainless Steel, Steel
Measurement System
Decimal Inch
Primary Material Application ISO Code
M, P
Description
Square Milling Insert, Inscribed Circle 0.375 in
