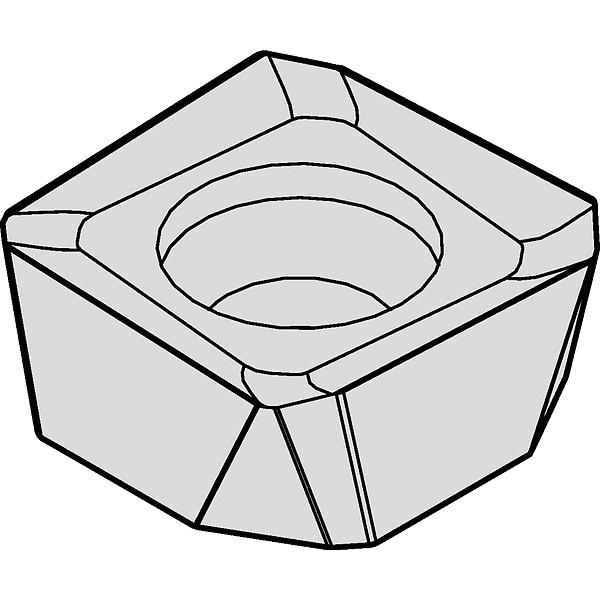

Widia Square Milling Insert SNKT435AZER20 WP35CM - main

Square Milling Insert

  • Mfr # SNKT435AZER20 WP35CM

  • Zoro # G110411489

product price: $21.79
/ea
Sold in multiples of 5 for $108.95

Key Features

For Use With
M660 Series Face Mills
Lead Angle
45 Degrees
Inscribed Circle
0.500 in
Insert Style
SNKT
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SNKT435AZER20 WP35CM
Zoro #
G110411489
UPC #
4064182637412
Country of Origin
Multiple

Dimensions

Insert Size
435
Depth of Cut
0.0787 in
Thickness
0.2162 in
Cutting Edge Length
0.5000 in

Details

For Use With
M660 Series Face Mills
Lead Angle
45 Degrees
Inscribed Circle
0.500 in
Insert Style
SNKT
Chip-Breaker
Yes
ISO Number
SNKT1205AZER20
Rake
Positive
Item
Square Milling Insert
Wiper Insert
Yes
Secondary Material Application ISO Code
K, S
Features
Reliability and High MRR Capability
Secondary Material Application
Cast Iron, High-Temperature Alloy
Primary Material Application ISO Code
M, P
Finish - Machining
TiN+TiCN+Al2O3
Manufacturer Grade
WP35CM
Number of Cutting Edges
4
Primary Material Application
Stainless Steel, Steel
Cutting Application
Milling
Shape
Square
Material - Machining
Carbide
ANSI Code
SNKT435AZER20
Coating Process
CVD
Measurement System
Decimal Inch

Description

Square Milling Insert, Inscribed Circle 0.500 in, Rake Positive
