Shop WIDIA

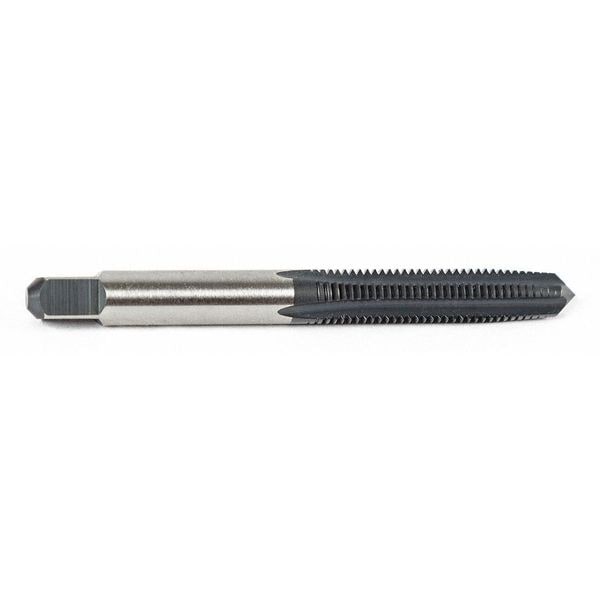

Straight Flute Hand Tap, 1/4"-28, Taper, 4 Flutes, UNC

  • Mfr # 19208

  • Zoro # G7695348

product price:
$
9.19
/ea

Key Features

Shank Dia.
0.255"
Tap Material
High Speed Steel
Tap Chamfer
Taper
Tap Style
Straight Flute (Hand)
Tap Dimension Type
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
19208
Zoro #
G7695348
UPC #
-
Country of Origin
Multiple
Item
Straight Flute Hand Tap
Tap Material
High Speed Steel
Tap Chamfer
Taper
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
Tap Grouping
Tap
List Number
5303
Tap Thread Type
UNC
Tap Finish
Black Oxide
Number of Pieces
1
Standards
DIN 376
Series
5303
Cutting Direction - Machining
Right Hand
Spiral Direction
Neutral
Coolant Fed
Non-Coolant Through
Secondary Material Application ISO Code
K, M, N
Threads per Inch
28
Class of Fit
2B, 3B
Thread Limit
H3
Primary Material Application ISO Code
P
Thread Standard
UNF
Extended Neck
Yes
Tap Shank Standard
ANSI
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Shank Type - Machining
Straight
Primary Material Application
Steel
Measurement System
Fractional Inch
Helix Angle
0 Degrees
Tap Application
Blind Hole, Through Hole
Shank Type
Square

Description

Straight Flute Tap, Thread Size 1/4 In.-28, UNF, Taper, Overall Length 2.5 in, High Speed Steel, Black Oxide, Right Hand, Thread Length 1 in, 75 Percent Thread Drill Size 5.45 mm, Thread Limit H3, Class of Fit 2B, 3B
