  11. Straight Flute Hand Tap, 3/8"-16, Plug, 4 Flutes, UNC

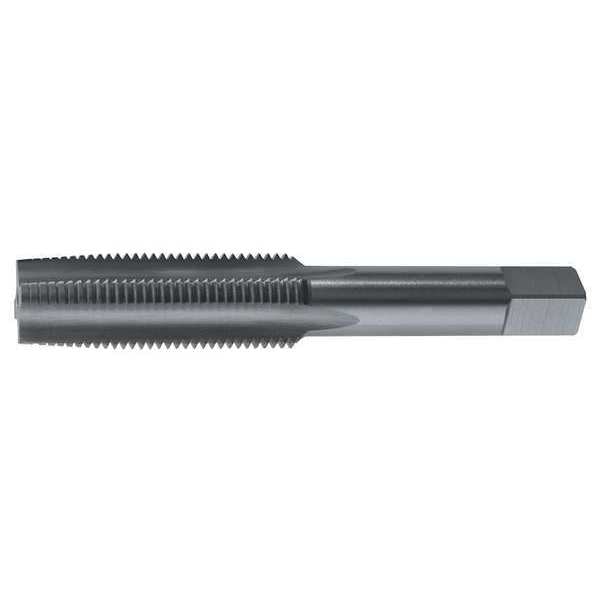

Widia Straight Flute Hand Tap, 3/8"-16, Plug, 4 Flutes, UNC 19280 - main

Straight Flute Hand Tap, 3/8"-16, Plug, 4 Flutes, UNC

  • Mfr # 19280

  • Zoro # G3622604

product price: $11.79
/ea

Key Features

Shank Dia.
0.381"
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Size
3/8"
Tap Style
Straight Flute (Hand)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
19280
Zoro #
G3622604
UPC #
-
Country of Origin
Multiple

Dimensions

Shank Dia.
0.381"
Tap Size
3/8"
Tap Dimension Type
Inch
Overall Length
2-15/16"
Pitch Diameter Limit
H3
Thread Length
1-1/4"
Tap Thread Size
3/8"-16
Size
3/8"
Thread Size
3/8"-16
Tap Length Standard
ANSI 302
65% Thread Drill Size
P
75% Thread Drill Size
5/16 in
55% Thread Drill Size
8.40 mm
Square Size
0.2860 in
Shank Length
1 11/16 in

Details

Item
Straight Flute Hand Tap
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
Standards
ANSI
Tap Thread Type
UNC
Number of Pieces
1
Tap Grouping
Tap
List Number
5303S
Tap Finish
Oxide
Cutting Direction - Machining
Right Hand
Series
5303/2303
Primary Material Application
Steel
Measurement System
Fractional Inch
Thread Standard
UNC
Shank Type - Machining
Straight
Secondary Material Application ISO Code
K, M, N
Tap Shank Standard
ANSI 302
Extended Neck
No
Coolant Fed
Non-Coolant Through
Threads per Inch
16
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Spiral Direction
Neutral
Thread Limit
H3
Primary Material Application ISO Code
P
Helix Angle
0 Degrees

Description

Straight Flute Tap, Thread Size 3/8 In.-16, UNC, Plug, Overall Length 2.94 in, High Speed Steel, Black Oxide, Right Hand, Thread Length 1.25 in, 75 Percent Thread Drill Size 5/16 in, Thread Limit H3
