Shop WIDIA

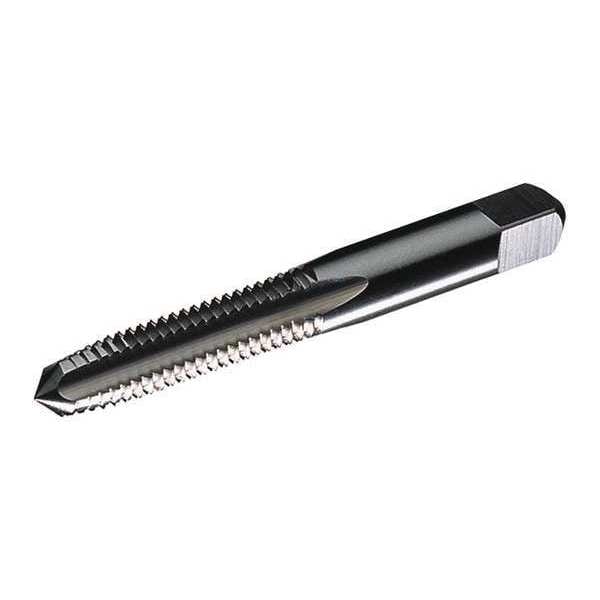

Straight Flute Hand Tap, Bottoming, 3 Flutes

  • Mfr # 15136
  • Zoro # G2242773

product price:
$
16.89
/ea

Key Features

Shank Dia.
0.141"
Tap Chamfer
Bottoming
Tap Dimension Type
Inch
Tap Material
High Speed Steel
Tap Size
#2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
15136
Zoro #
G2242773
UPC #
-
Country of Origin
Multiple
Item
Straight Flute Hand Tap
Tap Chamfer
Bottoming
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
3
Standards
ANSI, Unified and American National Threads
Tap Thread Type
UNC
Thread Direction
Right Hand
List Number
5305
Number of Pieces
1
Tap Finish
Bright (Uncoated)
Tap Grouping
Tap
Cutting Direction - Machining
Right Hand
Series
5305/2305
Measurement System
Pipe
Primary Material Application
Aluminum, Brass, Bronze, Copper
Primary Material Application ISO Code
N
Extended Neck
Yes
Thread Standard
UNC
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Tap Shank Standard
ANSI 302
Threads per Inch
56
Spiral Direction
Neutral
Thread Limit
H2
Helix Angle
0 Degrees
Tap Application
Blind Hole
Shank Type
Square

Dimensions

Shank Dia.
0.141"
Tap Dimension Type
Inch
Tap Size
#2
Overall Length
1-3/4"
Thread Length
7/16"
Tap Thread Size
#2-56
Pitch Diameter Limit
H2
Size
#2
Thread Size
#2-56
75% Thread Drill Size
1.73 mm
Square Size
0.1100 in
55% Thread Drill Size
#49
Shank Length
1 9/32 in
Tap Length Standard
ANSI 302
65% Thread Drill Size
#49
Square Width
0.11 in
Shank Diameter
0.141 in
Square Length
0.11 in
Wire Rope Length
1.75 in
Length
1.75 in

Description

Straight Flute Tap, Thread Size #2-56, UNC, Bottoming, Overall Length 1 3/4 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 7/16 in, 75 Percent Thread Drill Size 1.73 mm, Thread Limit H2
