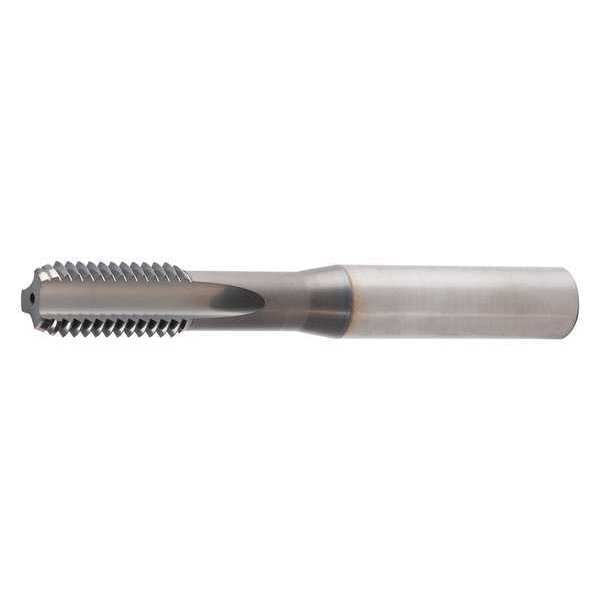

Straight Flute Hand Tap Bottoming, 3 Flutes
Mfr # GX472867
Zoro # G7666830
product price:Â
$
260.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
8.00mm
Tap Chamfer
Bottoming
Tap Dimension Type
Metric
Tap Material
High Speed Steel
Tap Size
M8
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- GX472867
- Zoro #
- G7666830
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Shank Dia.
- 8.00mm
- Tap Dimension Type
- Metric
- Tap Size
- M8
- Overall Length
- 80.00mm
- Tap Thread Size
- M8-1.25
- Thread Length
- 15.00mm
- Pitch Diameter Limit
- 6HX
- 65% Thread Drill Size
- I
- 75% Thread Drill Size
- H
- 55% Thread Drill Size
- 7.10 mm
- Square Size
- 0.2380 in
- Tap Length Standard
- DIN 6535 HA
- Thread Size
- M8x1.25
- Shank Length
- 43.20 mm
- Square Length
- 0.24 in
- Square Width
- 0.24 in
- Shank Diameter
- 8 mm
- Wire Rope Length
- 80 mm
- Length
- 80 mm
Description
Straight Flute Tap, Thread Size M8x1.25, Metric, Bottoming, Overall Length 80 mm, Carbide, CrC/C, Right Hand, Thread Length 15 mm, 75 Percent Thread Drill Size H, Thread Limit 6HX, Class of Fit 6HX
