  6. Straight Flute Hand Tap, M18-1.50, Plug, 4 Flutes, UNC
Widia Straight Flute Hand Tap, M18-1.50, Plug, 4 Flutes, UNC 14590 - main

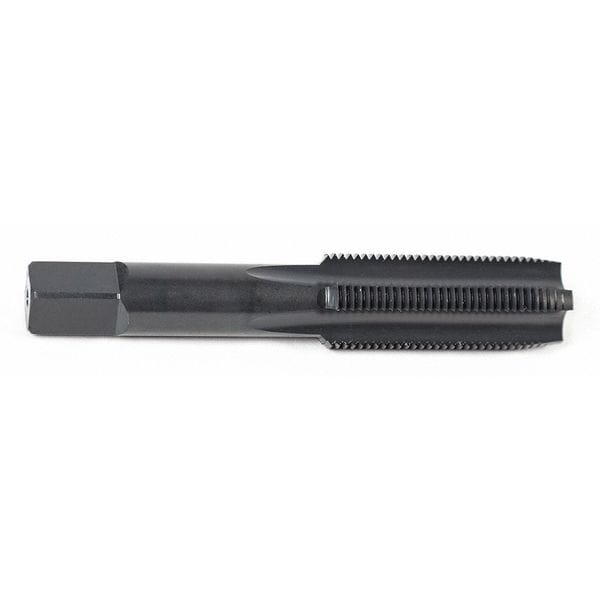

Straight Flute Hand Tap, M18-1.50, Plug, 4 Flutes, UNC

  • Mfr # 14590

  • Zoro # G7697350

product price:  $65.69
/ea

Key Features

Shank Dia.
13.77mm
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Size
M18
Tap Style
Straight Flute (Hand)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
14590
Zoro #
G7697350
UPC #
-
Country of Origin
Multiple

Dimensions

Shank Dia.
13.77mm
Tap Size
M18
Tap Dimension Type
Metric
Overall Length
102.39mm
Thread Length
46.04 mm
Tap Thread Size
M18-1.50
Pitch Diameter Limit
H4
55% Thread Drill Size
16.90 mm
Tap Length Standard
ANSI
Square Size
0.4060 in
Shank Length
2 7/32 in
75% Thread Drill Size
16.50 mm
Thread Size
M18x1.5
65% Thread Drill Size
21/32 in

Details

Item
Straight Flute Hand Tap
Tap Material
High Speed Steel
Tap Chamfer
Plug
Tap Style
Straight Flute (Hand)
Number of Flutes
4
Thread Direction
Right Hand
Number of Pieces
1
Tap Finish
Bright (Uncoated)
List Number
5353
Standards
ANSI
Tap Thread Type
UNC
Tap Grouping
Tap
Cutting Direction - Machining
Right Hand
Series
5353
Extended Neck
Yes
Tap Shank Standard
ANSI
Measurement System
Metric
Primary Material Application
Steel
Shank Type - Machining
Straight
Thread Standard
Metric
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Secondary Material Application ISO Code
K, M, N
Primary Material Application ISO Code
P
Thread Pitch
1.50mm
Coolant Fed
Non-Coolant Through
Thread Limit
H4
Spiral Direction
Neutral
Helix Angle
0 Degrees

Description

Straight Flute Tap, Thread Size M18x1.5, Metric, Plug, Overall Length 102.39 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 46.04 mm, 75 Percent Thread Drill Size 16.50 mm, Thread Limit H4
