Shop WIDIA

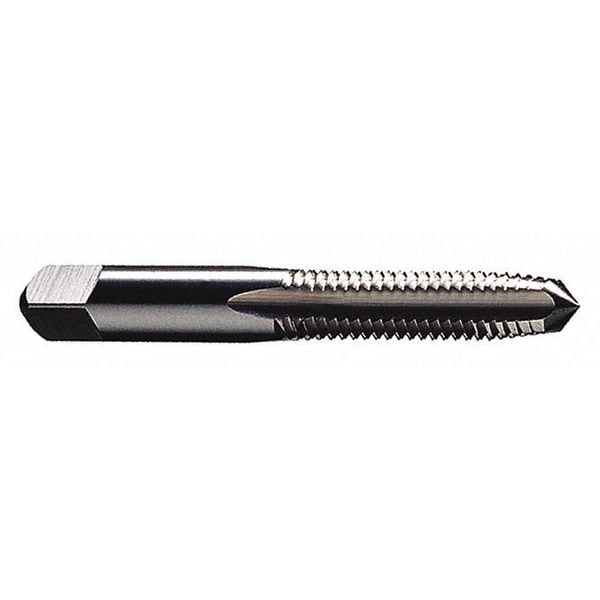

Straight Flute Hand Tap Plug, 2 Flutes

  • Mfr # 14718

  • Zoro # G7697457

product price:
$
24.19
/ea

Key Features

Shank Dia.
0.141"
Tap Dimension Type
Inch
Tap Chamfer
Plug
Tap Material
High Speed Steel
Tap Size
M1.6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
14718
Zoro #
G7697457
UPC #
-
Country of Origin
Multiple

Dimensions

Shank Dia.
0.141"
Tap Dimension Type
Inch
Tap Size
M1.6
Overall Length
1-5/8"
Pitch Diameter Limit
D3
Tap Thread Size
M1.6-0.35
Thread Length
7.95 mm
Thread Size
M1.6x0.35
75% Thread Drill Size
1.25 mm
Shank Length
1 5/16 in
Tap Length Standard
ANSI
65% Thread Drill Size
1.30 mm
55% Thread Drill Size
1.35 mm
Square Size
0.1100 in
Shank Diameter
3.58 mm
Square Width
0.11 in
Square Length
0.11 in
Wire Rope Length
41.4 mm
Length
41.4 mm

Details

Item
Straight Flute Hand Tap
Tap Chamfer
Plug
Tap Material
High Speed Steel
Tap Style
Straight Flute (Hand)
Number of Flutes
2
Standards
ANSI
List Number
5353
Number of Pieces
1
Tap Thread Type
UNC
Tap Grouping
Tap
Thread Direction
Right Hand
Tap Finish
Bright (Uncoated)
Cutting Direction - Machining
Right Hand
Series
5353
Thread Limit
D3
Tap Shank Standard
ANSI
Coolant Fed
Non-Coolant Through
Spiral Direction
Neutral
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Primary Material Application
Steel
Primary Material Application ISO Code
P
Shank Type - Machining
Straight
Extended Neck
Yes
Thread Pitch
0.35mm
Measurement System
Metric
Thread Standard
Metric
Secondary Material Application ISO Code
K, M, N
Helix Angle
0 Degrees
Shank Type
Square
Tap Application
Blind Hole, Through Hole

Description

Straight Flute Tap, Thread Size M1.6x0.35, Metric, Plug, Overall Length 41.4 mm, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 7.95 mm, 75 Percent Thread Drill Size 1.25 mm, Thread Limit D3
