Thread Turning Toolholder, A-DCL-KC, HSS
Mfr # A40TDCLNR12KC04
Zoro # G3820203
product price: $453.99
/ea
Free Shipping & Returns
Key Features
Insert Size
120408
Cutting Direction
Right Hand
Rake
-5 Degrees Axial, -9 Degrees Radial
ISO Number
A40TDCLNR12KC04
Cutting Dia.
1.5750mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A40TDCLNR12KC04
Zoro #
G3820203
UPC #
4050841467674
Country of Origin
India

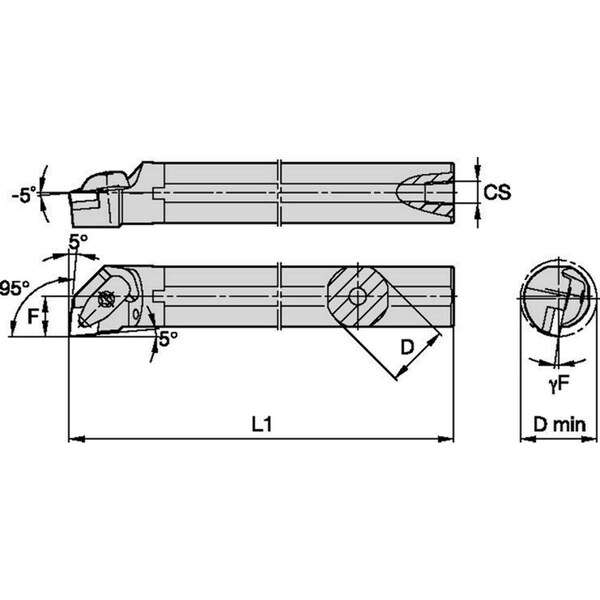

Dimensions
Insert Size
120408
Cutting Dia.
1.5750mm
Shank Dia.
40.00mm
Overall Length
300.00mm
Shank Length
256.58mm
Min. Bore Dia.
50.00mm
Insert Cutting Edge Length
12.90mm
Details
Item
Indexable Thread Turning Tool Holder
Cutting Direction
Right Hand
Rake
-5 Degrees Axial, -9 Degrees Radial
ISO Number
A40TDCLNR12KC04
Toolholder Style
A-DCL-KC
ANSI Code
A40TDCLNR12KC04
Shank Material
High Speed Steel
Cutting Application
Inside Diameter Chamfering, Inside Diameter Chamfering and Profiling
Number of Coolant Holes
1
Insert Holding Type
Top Clamping
Center to Cutting Tip
0 in
Coolant Fed
Coolant Through
Insert Style
CN..
Measurement System
Metric
Description
Indexable Thread Turning Tool Holder, Insert Style CN.., Right Hand, Inside Diameter Chamfering, Inside Diameter Chamfering and Profiling, ANSI Code A40TDCLNR12KC04, Center to Cutting Tip 0 in, Coolant Fed Coolant Through
