Thread Turning Toolholder, A20UDCLNR4KC3
Mfr # A20UDCLNR4KC3
Zoro # G3820109
product price: $543.99
/ea
Free Shipping & Returns
Key Features
Insert Size
432
Cutting Direction
Right Hand
Rake
-12 Degrees Radial, -5 Degrees Axial
ISO Number
A20UDCLNR4KC3
Cutting Dia.
1.2500"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A20UDCLNR4KC3
Zoro #
G3820109
UPC #
4050841473392
Country of Origin
India
Dimensions
Insert Size
432
Cutting Dia.
1.2500"
Overall Length
14 in
Shank Dia.
1-1/4 in
Shank Length
314.27mm
Min. Bore Dia.
37.34mm
Insert Cutting Edge Length
12.90mm
Details
Item
Indexable Thread Turning Tool Holder
Cutting Direction
Right Hand
Rake
-12 Degrees Radial, -5 Degrees Axial
ISO Number
A20UDCLNR4KC3
Coolant Fed
Coolant Through

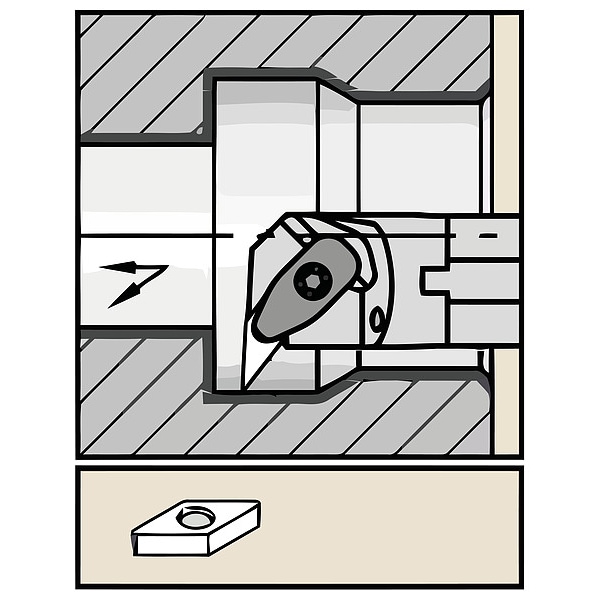

Cutting Application
Inside Diameter Chamfering, Inside Diameter Chamfering and Profiling
Center to Cutting Tip
0 in
Number of Coolant Holes
1
Shank Material
High Speed Steel
Insert Style
CN..
Insert Holding Type
Top Clamping
ANSI Code
A20UDCLNR4KC3
Toolholder Style
A-DCLN-KC
Measurement System
Fractional Inch
Description
Indexable Thread Turning Tool Holder, Insert Style CN.., Right Hand, Inside Diameter Chamfering, Inside Diameter Chamfering and Profiling, ANSI Code A20UDCLNR4KC3, Center to Cutting Tip 0 in, Coolant Fed Coolant Through
