Thread Turning Toolholder, AVR32D3R
Mfr # AVR32D3R
Zoro # G3760834
product price: $273.99
/ea
Free Shipping & Returns
Key Features
Insert Size
3
Cutting Direction
Right Hand
Overall Length
250.00mm
Shank Dia.
32.00mm
Cutting Dia.
1.2598mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
AVR32D3R
Zoro #
G3760834
UPC #
4021169305702
Country of Origin
Israel
Dimensions
Insert Size
3
Overall Length
250.00mm
Shank Dia.
32.00mm
Cutting Dia.
1.2598mm
Shank Length
29.00mm
Head Length
60.00mm
Shank Width
30.00mm
Min. Bore Dia.
36.00mm
Shank Height
29.00mm
Details
Item
Indexable Thread Turning Tool Holder
Cutting Direction
Right Hand
Shank Shape
Straight
Rake
-1.5 Degrees Axial, -15 Degrees Radial
Toolholder Style
NA-VR
Shank Material
High Speed Steel
Insert Holding Type
Screw Clamping
Coolant Fed
Non-Coolant Through
Center to Cutting Tip
14.50mm
Cutting Application

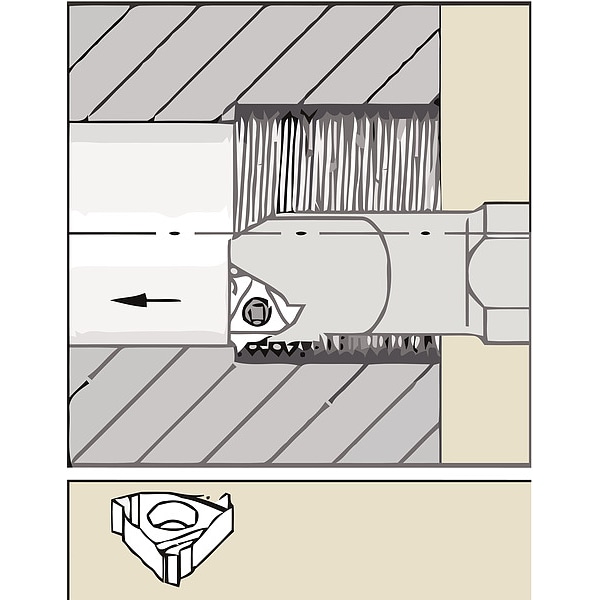

Inside Diameter Internal Threading
ISO Number
AVR32D3R
ANSI Code
AVR32D3R
Measurement System
Metric
Description
Indexable Thread Turning Tool Holder, Right Hand, Inside Diameter Internal Threading, Shank Width 30.00mm, ANSI Code AVR32D3R, Center to Cutting Tip 14.50mm, Coolant Fed Non-Coolant Through
