Thread Turning Toolholder, E16RSTFCL16
Mfr # E16RSTFCL16
Zoro # G3821509
product price: $728.99
/ea
Free Shipping & Returns
Key Features
Insert Size
16T308
Cutting Direction
Left Hand
ISO Number
E16RSTFCL16
Rake
-9 Degrees Radial, 0 Degrees Axial
Shank Shape
Offset
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
E16RSTFCL16
Zoro #
G3821509
UPC #
4021169124075
Country of Origin
Germany
Dimensions
Insert Size
16T308
Shank Dia.
16.00mm
Cutting Dia.
0.6299mm
Overall Length
200.00mm
Min. Bore Dia.
20.00mm
Insert Cutting Edge Length
16.50mm
Details
Item
Indexable Thread Turning Tool Holder
Cutting Direction
Left Hand
ISO Number
E16RSTFCL16
Rake
-9 Degrees Radial, 0 Degrees Axial
Shank Shape
Offset
ANSI Code
E16RSTFCL16
Center to Cutting Tip
0 in
Insert Style
TC..
Shank Material
Carbide

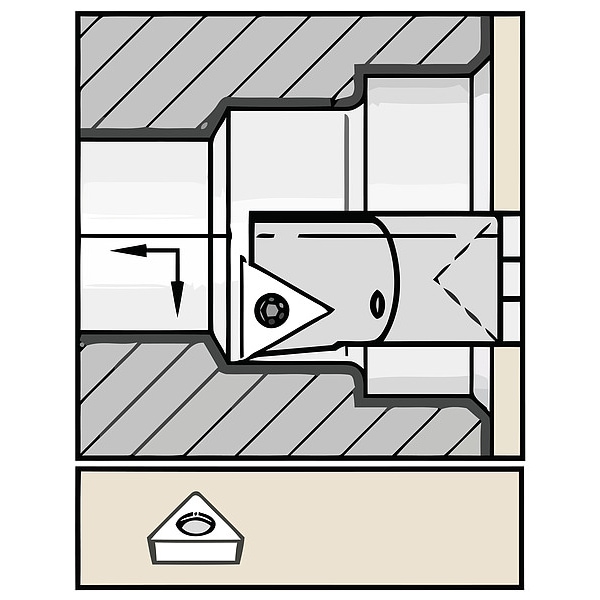

Cutting Application
Inside Diameter Chamfering and Profiling
Number of Coolant Holes
1
Coolant Fed
Coolant Through
Toolholder Style
E-STFC
Insert Holding Type
Screw Clamping
Measurement System
Metric
Description
Indexable Thread Turning Tool Holder, Insert Style TC.., Left Hand, Inside Diameter Chamfering and Profiling, ANSI Code E16RSTFCL16, Center to Cutting Tip 0 in, Coolant Fed Coolant Through
