Thread Turning Toolholder, NER162C
Mfr # NER162C
Zoro # G3763372
product price: $153.99
/ea
Free Shipping & Returns
Key Features
Overall Length
5 in
Shank Shape
Square
Insert Size
2
Cutting Direction
Right Hand
Rake
0 Degrees Axial, 0 Degrees Radial
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
NER162C
Zoro #
G3763372
UPC #
4021169724213
Country of Origin
United States

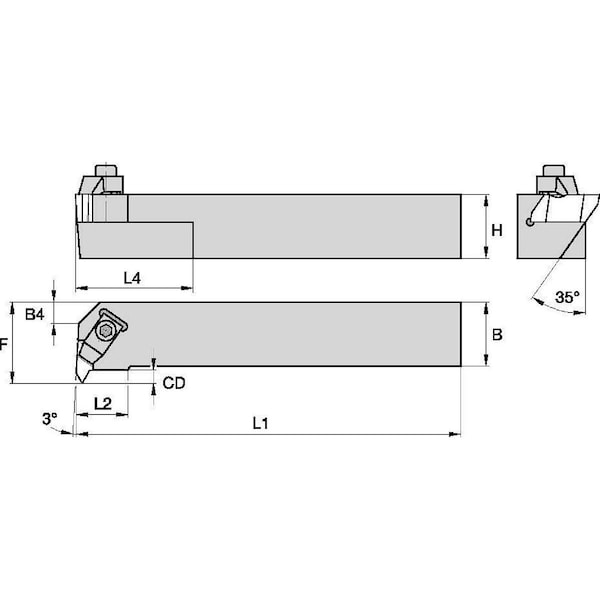

Dimensions
Overall Length
5 in
Insert Size
2
Shank Length
4-1/2"
Shank Width
1 in
Shank Height
1 in
Depth of Cut
0.1380"
Max. Bore Depth
1"
Head Length
1/2"
Details
Item
Indexable Thread Turning Tool Holder
Shank Shape
Square
Cutting Direction
Right Hand
Rake
0 Degrees Axial, 0 Degrees Radial
Shank Material
High Speed Steel
Cutting Application
Threading
Coolant Fed
Non-Coolant Through
Insert Style
N.2L
ISO Number
NER162C
Toolholder Style
NE
Insert Holding Type
Top Clamping
Center to Cutting Tip
1"
ANSI Code
NER162C
Measurement System
Fractional Inch
Description
Indexable Thread Turning Tool Holder, Cutting Direction Right Hand, Rake 0 Degrees Axial, 0 Degrees Radial, Shank Width 1 in, Shank Height 1 in, Overall Length 5 in
