Thread Turning Toolholder, NSL2020K3
Mfr # NSL2020K3
Zoro # G3749074
product price: $152.99
/ea
Free Shipping & Returns
Key Features
Cutting Direction
Left Hand
Insert Size
3
Shank Shape
Square
Overall Length
125.00mm
Rake
0 Degrees Axial, 0 Degrees Radial
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
NSL2020K3
Zoro #
G3749074
UPC #
4021169716614
Country of Origin
United States

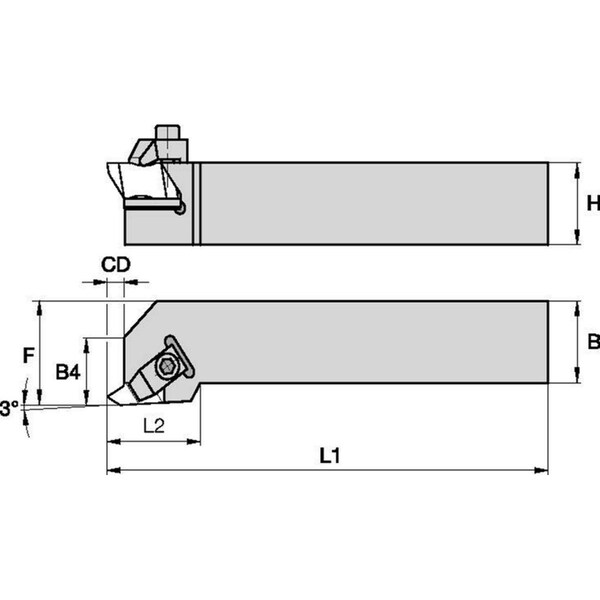

Dimensions
Insert Size
3
Overall Length
125.00mm
Shank Length
94.25mm
Shank Width
20.00mm
Shank Height
20.00mm
Depth of Cut
5.33mm
Head Length
32.00mm
Details
Item
Indexable Thread Turning Tool Holder
Cutting Direction
Left Hand
Shank Shape
Square
Rake
0 Degrees Axial, 0 Degrees Radial
Shank Material
High Speed Steel
Cutting Application
Face Grooving, Grooving
Coolant Fed
Non-Coolant Through
Insert Style
N.3L
ANSI Code
NSL2020K3
Center to Cutting Tip
20.00mm
Toolholder Style
NS
Insert Holding Type
Top Clamping
ISO Number
NSL2020K3
Measurement System
Metric
Description
Indexable Thread Turning Tool Holder, Cutting Direction Left Hand, Rake 0 Degrees Axial, 0 Degrees Radial, Shank Width 20.00mm, Shank Height 20.00mm, Overall Length 125.00mm
