Thread Turning Toolholder, NSR3232P4
Mfr # NSR3232P4
Zoro # G3820194
product price: $183.99
/ea
Free Shipping & Returns
Key Features
Insert Size
4
Cutting Direction
Right Hand
Rake
0 Degrees Axial, 0 Degrees Radial
ISO Number
NSR3232P4
Shank Shape
Square
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
NSR3232P4
Zoro #
G3820194
UPC #
4021169707308
Country of Origin
United States

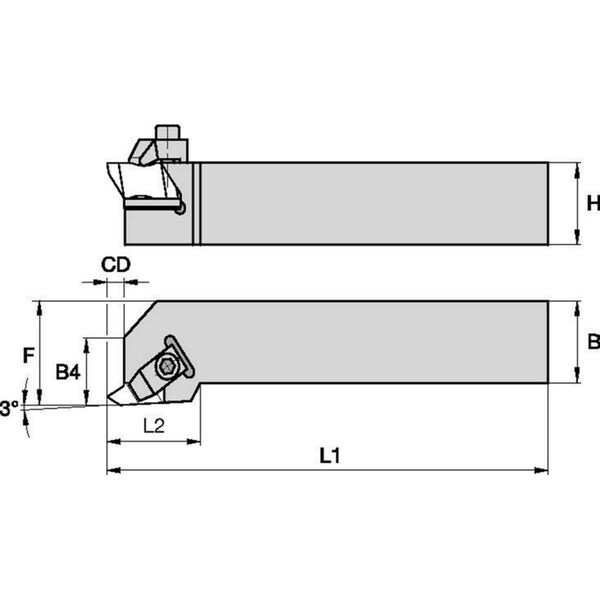

Dimensions
Insert Size
4
Overall Length
170.00mm
Shank Width
32.00mm
Shank Height
32.00mm
Depth of Cut
7.47mm
Shank Length
136.25mm
Head Length
35.00mm
Details
Item
Indexable Thread Turning Tool Holder
Cutting Direction
Right Hand
Rake
0 Degrees Axial, 0 Degrees Radial
ISO Number
NSR3232P4
Shank Shape
Square
Insert Style
N.4R
Cutting Application
Face Grooving, Grooving
Shank Material
High Speed Steel
Coolant Fed
Non-Coolant Through
Insert Holding Type
Top Clamping
ANSI Code
NSR3232P4
Toolholder Style
NS
Center to Cutting Tip
1"
Measurement System
Metric
Description
Indexable Thread Turning Tool Holder, Cutting Direction Right Hand, Rake 0 Degrees Axial, 0 Degrees Radial, Shank Width 32.00mm, Shank Height 32.00mm, Overall Length 170.00mm
