Thread Turning Toolholder, NSR854D
Mfr # NSR854D
Zoro # G3762444
product price: $153.99
/ea
Free Shipping & Returns
Key Features
Cutting Direction
Right Hand
Shank Length
117.30mm
Overall Length
6 in
Insert Size
4
Rake
0 Degrees Axial, 0 Degrees Radial
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
NSR854D
Zoro #
G3762444
UPC #
4021169722806
Country of Origin
United States

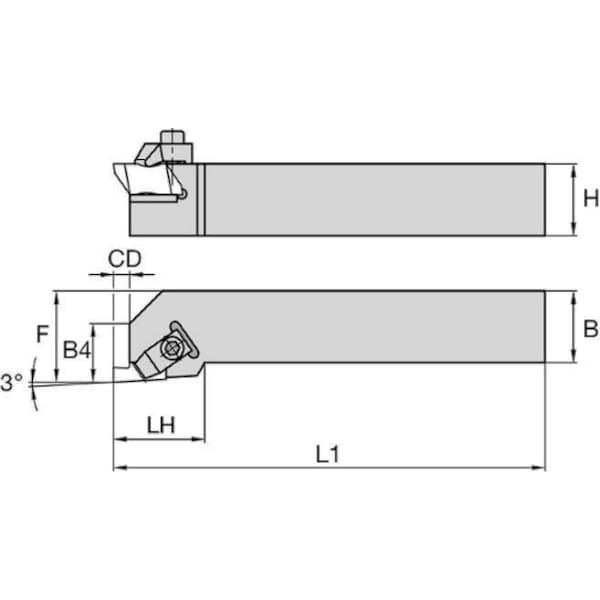

Dimensions
Shank Length
117.30mm
Overall Length
6 in
Insert Size
4
Shank Height
1-1/4 in
Shank Width
1 in
Depth of Cut
0.2940"
Head Length
1.3800"
Details
Item
Indexable Thread Turning Tool Holder
Cutting Direction
Right Hand
Rake
0 Degrees Axial, 0 Degrees Radial
Shank Shape
Square
Shank Material
High Speed Steel
Coolant Fed
Non-Coolant Through
Insert Style
N.4R
Cutting Application
Face Grooving, Grooving
Toolholder Style
NS
ISO Number
NSR854D
Center to Cutting Tip
1-1/4"
ANSI Code
NSR854D
Insert Holding Type
Top Clamping
Measurement System
Fractional Inch
Description
Indexable Thread Turning Tool Holder, Cutting Direction Right Hand, Rake 0 Degrees Axial, 0 Degrees Radial, Shank Width 1 in, Shank Height 1-1/4 in, Overall Length 6 in
