Thread Turning Toolholder, S1620LSER3
Mfr # S1620LSER3
Zoro # G3750973
product price: $294.99
/ea
Free Shipping & Returns
Key Features
Insert Size
3
Cutting Dia.
1.2500"
Rake
-1.5 Degrees Axial, -15 Degrees Radial
Shank Dia.
1-1/4 in
Shank Shape
Offset
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
S1620LSER3
Zoro #
G3750973
UPC #
4021169485510
Country of Origin
Israel

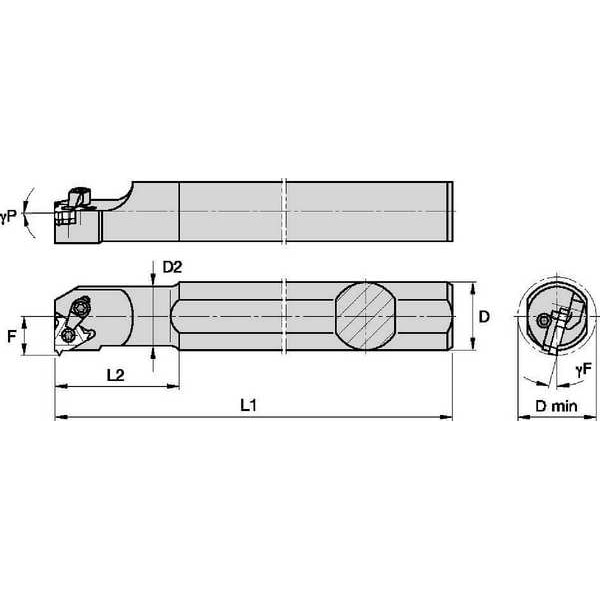

Dimensions
Insert Size
3
Cutting Dia.
1.2500"
Shank Dia.
1-1/4 in
Overall Length
10 in
Shank Length
7-1/2"
Head Length
2-1/2"
Min. Bore Dia.
30.48mm
Details
Item
Indexable Thread Turning Tool Holder
Rake
-1.5 Degrees Axial, -15 Degrees Radial
Shank Shape
Offset
Cutting Direction
Right Hand
Shank Material
High Speed Steel
Insert Style
LT16NR
Cutting Application
Inside Diameter Internal Threading
Coolant Fed
Non-Coolant Through
Insert Holding Type
Top Clamping
Center to Cutting Tip
0"
ISO Number
S1620LSER3
Toolholder Style
S-LSE
ANSI Code
S1620LSER3
Measurement System
Fractional Inch
Description
Indexable Thread Turning Tool Holder, Cutting Direction Right Hand, Rake -1.5 Degrees Axial, -15 Degrees Radial, Shank Dia. 1-1/4 in, Overall Length 10 in
