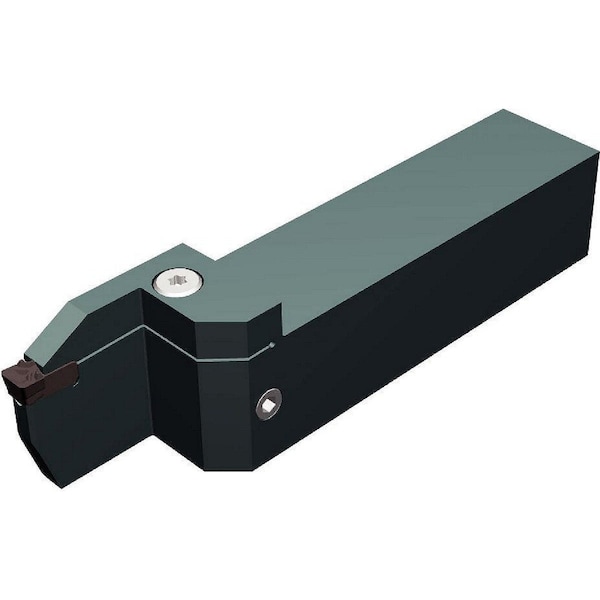

Thread Turning Toolholder, WGCSM, HSS
Mfr # WGCSMR2525M0516C
Zoro # G3750903
product price: $273.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
Square
Overall Length
150.00mm
Shank Length
113.00mm
Cutting Direction
Right Hand
Insert Size
5
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WGCSMR2525M0516C
Zoro #
G3750903
UPC #
4059782540583
Country of Origin
India
Dimensions
Overall Length
150.00mm
Shank Length
113.00mm
Insert Size
5
Cutting Height
25.00mm
Depth of Cut
16.00mm
Shank Width
25.00mm
Head Length
37.00mm
Shank Height
25.00mm
Details
Item
Indexable Thread Turning Tool Holder
Shank Shape
Square
Cutting Direction
Right Hand
Rake
3 Degrees Axial
Insert Style
WG0500M05P04
Cutting Application
Chamfering, Cut-Off, Facing, Grooving, Outside Diameter Deep Grooving, Profiling, Turning
Shank Material
High Speed Steel
Insert Holding Type
Clamp
Number of Coolant Holes
1
Center to Cutting Tip
25.00mm
Coolant Fed
Coolant Through
ISO Number
WGCSMR2525M0516C
ANSI Code
WGCSMR2525M0516C
Toolholder Style
WGCSM
Measurement System
Metric
Description
Indexable Thread Turning Tool Holder, Insert Style WG0500M05P04, Right Hand, Chamfering, Cut-Off, Facing, Grooving, Outside Diameter Deep Grooving, Profiling, Turning, Shank Width 25.00mm, ANSI Code WGCSMR2525M0516C, Center to Cutting Tip 25.00mm, Coolant Fed Coolant Through
