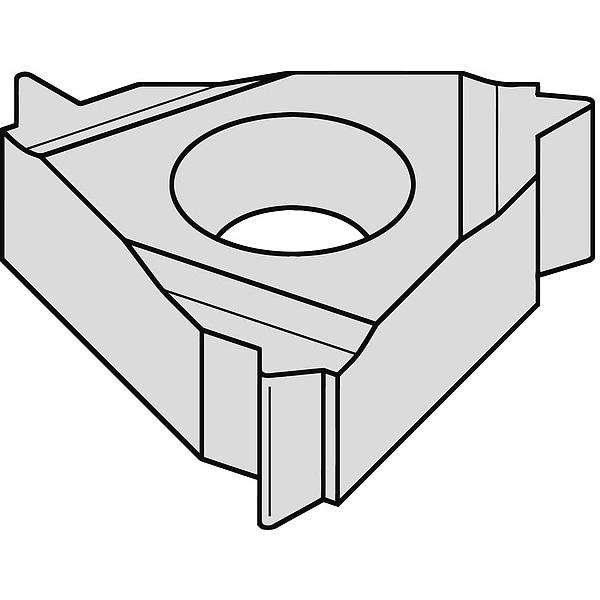

Widia Threading Insert, 3ER, Triangle 3ER18NPT - main

Threading Insert, 3ER, Triangle

  • Mfr # 3ER18NPT

  • Zoro # G3874864

product price: $28.59
/ea
Sold in multiples of 10 for $285.90

Key Features

Thread Type
NPT
Style
NPT
Insert Size
3
Chip-Breaker
Yes
Grade
TN6025
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3ER18NPT
Zoro #
G3874864
UPC #
4021169192685
Country of Origin
Germany

Dimensions

Insert Size
3
Thread Height Difference
0.80mm
Insert Length
16.50mm

Details

Item
Threading Insert
Thread Type
NPT
Style
NPT
Chip-Breaker
Yes
Grade
TN6025
Cutting Direction
Right Hand
ISO Number
3ER18NPT
Inscribed Circle
3/8 in
Insert Shape
Triangle
Insert Type
3ER
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Secondary Material Application ISO Code
N
Thread Standard
NPT
Finish - Machining
AlTiN
Included Angle
60 Degrees
ANSI Code
3ER18NPT
Manufacturer Grade
TN6025
Max. Thread Pitch
18
Threading Location
External
Insert Style
3ER
Thread Direction
Right Hand
Number of Cutting Edges
3
Cutting Application
Turning
Side-to-Cutting Tip
1.00mm
Feed Type
High
Coating Process
PVD
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Chip-Breaker Style
One Side
Primary Material Application ISO Code
K, M, P, S
Material - Machining
Carbide
Measurement System
Metric
Insert Holding Type
3/8 in

Description

Threading Insert, 3ER, External, Cutting Direction Right Hand, NPT, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium, Inscribed Circle 3/8 in
