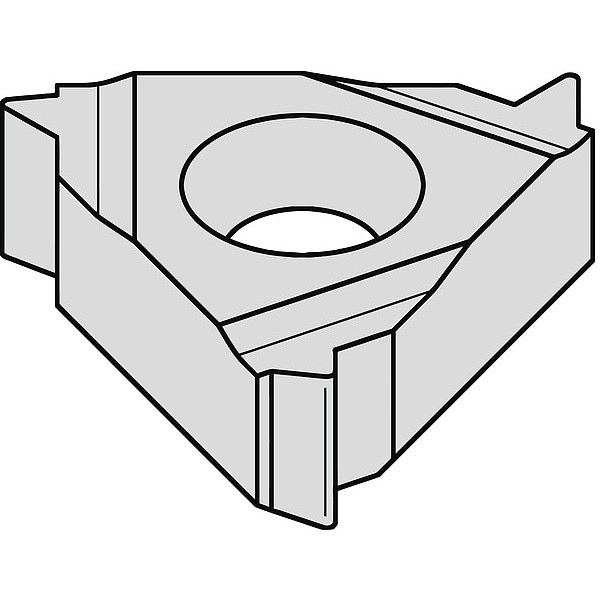

Widia Threading Insert, 3IR, Triangle 3IR115NPT - main

Threading Insert, 3IR, Triangle

  • Mfr # 3IR115NPT

  • Zoro # G3876632

product price: $28.59
/ea
Sold in multiples of 10 for $285.90

Key Features

Thread Type
NPT
Style
NPT
Insert Size
3
Chip-Breaker
Yes
Grade
TN6025
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3IR115NPT
Zoro #
G3876632
UPC #
4021169191749
Country of Origin
Israel

Dimensions

Insert Size
3
Insert Length
16.50mm
Thread Height Difference
1.09mm

Details

Item
Threading Insert
Thread Type
NPT
Style
NPT
Chip-Breaker
Yes
Grade
TN6025
Cutting Direction
Right Hand
Inscribed Circle
3/8 in
Insert Type
3IR
ISO Number
3IR115NPT
Insert Shape
Triangle
Cutting Application
Turning
Thread Standard
NPT
Chip-Breaker Style
One Side
Secondary Material Application ISO Code
N
Manufacturer Grade
TN6025
Number of Cutting Edges
3
Threading Location
Internal
Max. Thread Pitch
11.5
Side-to-Cutting Tip
1.50mm
ANSI Code
3IR115NPT
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Material - Machining
Carbide
Primary Material Application ISO Code
K, M, P, S
Thread Direction
Right Hand
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Finish - Machining
AlTiN
Coating Process
PVD
Insert Style
3IR
Included Angle
60 Degrees
Feed Type
High
Measurement System
Metric
Insert Holding Type
3/8 in

Description

Threading Insert, 3IR, Internal, Cutting Direction Right Hand, NPT, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium, Inscribed Circle 3/8 in
