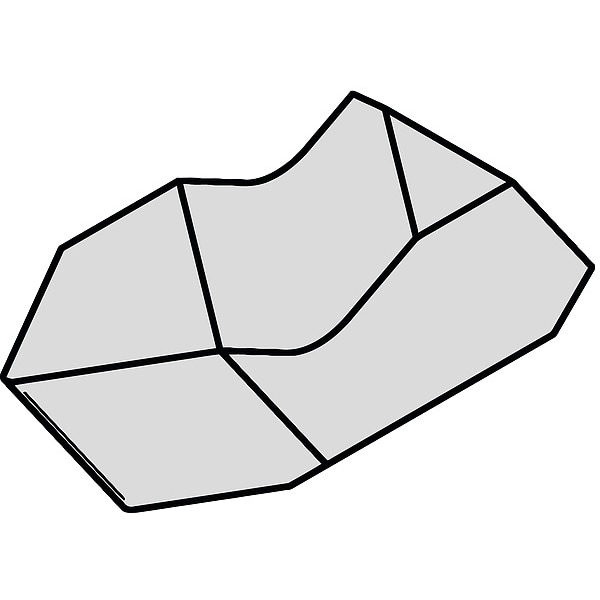

Widia Threading Insert, NA, NT1L - main

Threading Insert, NA,

  • Mfr # NT1L

  • Zoro # G3929884

product price: $15.89
/ea
Sold in multiples of 5 for $79.45

Key Features

Thread Type
ACME
Style
Partial Profile
Insert Size
1
Chip-Breaker
No
Grade
TN6010
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NT1L
Zoro #
G3929884
UPC #
4021169726033
Country of Origin
United States

Dimensions

Insert Size
1
Thread Height Difference
3.80mm
Thickness
2.54mm
Corner Radius
0.08mm

Details

Item
Threading Insert
Thread Type
ACME
Style
Partial Profile
Chip-Breaker
No
Grade
TN6010
Cutting Direction
Left Hand
Insert Shape
Top Notch
ISO Number
NT1L
Features
Deformation Resistant
Hole Type
No Hole
Max. Thread Pitch
24
ANSI Code
NT1L
Material - Machining
Carbide
Included Angle
29 Degrees
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Number of Cutting Edges
1
Manufacturer Grade
TN6010
Measurement System
Metric
Thread Profile Type
Partial
Product Family
Top Notch
Threading Location
Internal
Insert Holding Type
Top Clamp
Finish - Machining
TiAlN
Primary Material Application ISO Code
K, M, P, S
Secondary Material Application ISO Code
H, N
Min. Thread per Inch
12
Secondary Material Application
Aluminum, Brass, Bronze, Copper, Hardened Steel
Thread Standard
Partial Profile 60 Degrees
Cutting Application
Turning
Thread Direction
Left Hand
Min. Thread Pitch
1.00mm
Thread Pitch
1.00mm to 2.00mm
Clearance Angle
26 Degrees
Coating Process
PVD

Description

Threading Insert, NA, Internal, Cutting Direction Left Hand, Partial Profile 60 Degrees , Product Family Top Notch, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium
