  11. Threading Insert, NA,

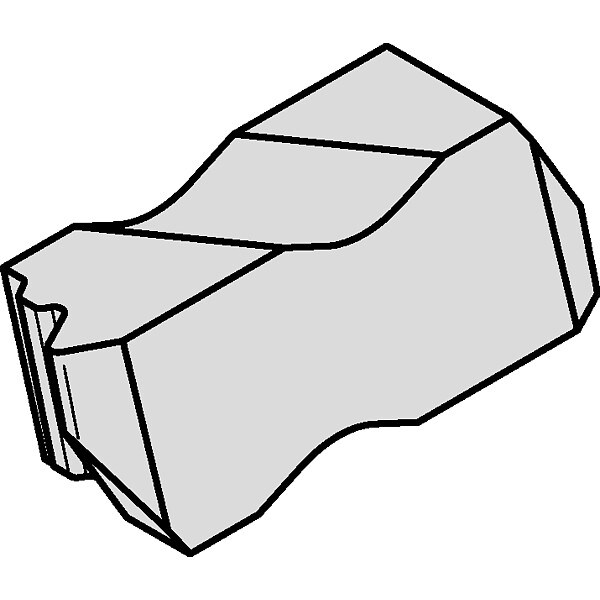

Widia Threading Insert, NA, NWC3R14E - main

Threading Insert, NA,

  • Mfr # NWC3R14E

  • Zoro # G3929659

product price: $30.49
/ea
Sold in multiples of 10 for $304.90

Key Features

Thread Type
ACME
Style
Whitworth
Insert Size
3
Chip-Breaker
No
Grade
TN6025
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NWC3R14E
Zoro #
G3929659
UPC #
4021169592638
Country of Origin
United States

Dimensions

Insert Size
3
Thread Height Difference
7.19mm
Thickness
8.74mm
Corner Radius
0.24mm

Details

Item
Threading Insert
Thread Type
ACME
Style
Whitworth
Chip-Breaker
No
Grade
TN6025
Cutting Direction
Right Hand
ISO Number
NWC3R14E
Insert Shape
Top Notch
Included Angle
29 Degrees
Secondary Material Application ISO Code
N
Measurement System
Metric
Thread Profile Type
Full
Thread Direction
Right Hand
Max. Thread Pitch
14
Clearance Angle
16 Degrees
Finish - Machining
AlTiN
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
ANSI Code
NWC3R14E
Product Family
Top Notch
Material - Machining
Carbide
Thread Standard
Whitworth
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Coating Process
PVD
Insert Holding Type
Top Clamp
Threading Location
External
Number of Cutting Edges
2
Manufacturer Grade
TN6025
Primary Material Application ISO Code
K, M, P, S
Hole Type
No Hole
Cutting Application
Turning
Feed Type
High

Description

Threading Insert, NA, External, Cutting Direction Right Hand, Whitworth, Product Family Top Notch, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium
