  11. Threading Insert, NDC,

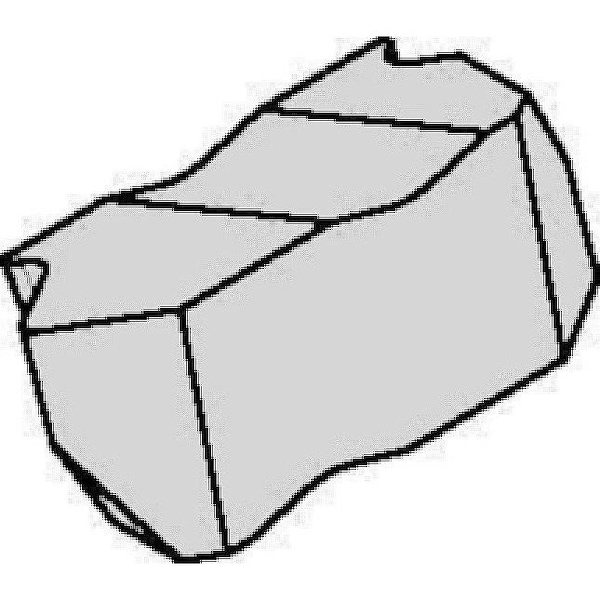

Widia Threading Insert, NDC, NDC38RDL75 - main

Threading Insert, NDC,

  • Mfr # NDC38RDL75

  • Zoro # G3933052

product price: $27.29
/ea
Sold in multiples of 10 for $272.90

Key Features

Style
API Round
Insert Size
3
Chip-Breaker
No
Grade
TN6025
Cutting Direction
Left Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NDC38RDL75
Zoro #
G3933052
UPC #
4021169725654
Country of Origin
United States

Dimensions

Insert Size
3
Thickness
8.74mm
Corner Radius
0.43mm
Thread Height Difference
3.18mm

Details

Item
Threading Insert
Style
API Round
Chip-Breaker
No
Grade
TN6025
Cutting Direction
Left Hand
Insert Type
NDC
Insert Shape
Top Notch
ISO Number
NDC38RDL75
Insert Style
NDC
Thread Profile Type
Full
Cutting Application
Turning
Insert Holding Type
Top Clamp
Measurement System
Metric
Thread Direction
Left Hand
Number of Cutting Edges
2
Clearance Angle
15 Degrees
Threading Location
External, Internal
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Primary Material Application ISO Code
K, M, P, S
Hole Type
No Hole
Coating Process
PVD
Manufacturer Grade
TN6025
Max. Thread Pitch
8
Thread Standard
API Round
Material - Machining
Carbide
Included Angle
60 Degrees
Secondary Material Application ISO Code
N
ANSI Code
NDC38RDL75
Feed Type
High
Finish - Machining
AlTiN
Product Family
Top Notch
Secondary Material Application
Aluminum, Brass, Bronze, Copper

Description

Threading Insert, NDC, External, Internal, Cutting Direction Left Hand, API Round, Product Family Top Notch, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium
