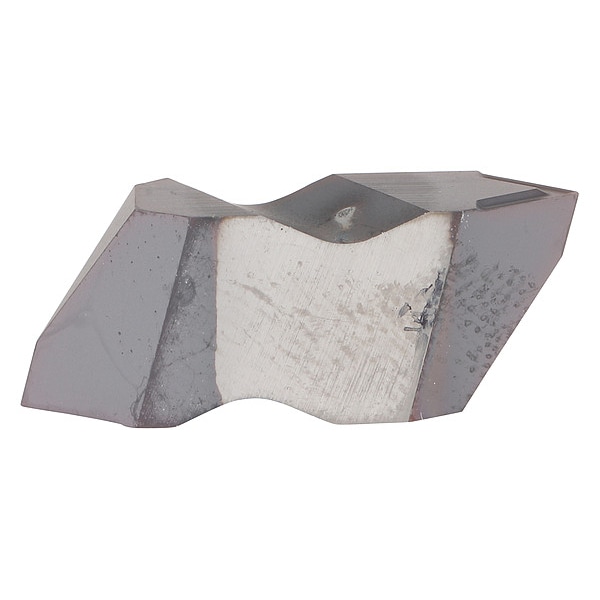

Widia Threading Insert, NT, NT3RK - main

Threading Insert, NT,

  • Mfr # NT3RK

  • Zoro # G3931783

product price: $28.99
/ea
Sold in multiples of 5 for $144.95

Key Features

Style
Partial Profile
Insert Size
3
Chip-Breaker
Yes
Grade
TN6010
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NT3RK
Zoro #
G3931783
UPC #
4021169664526
Country of Origin
United States

Dimensions

Insert Size
3
Thickness
8.74mm
Thread Height Difference
2.50mm
Corner Radius
0.17mm

Details

Item
Threading Insert
Style
Partial Profile
Chip-Breaker
Yes
Grade
TN6010
Cutting Direction
Right Hand
ISO Number
NT3RK
Insert Type
NT
Insert Shape
Top Notch
Insert Style
NT
Min. Thread per Inch
6
Thread Profile Type
Partial
Max. Thread Pitch
20
Number of Cutting Edges
2
Manufacturer Grade
TN6010
Secondary Material Application ISO Code
H, N
Material - Machining
Carbide
Secondary Material Application
Aluminum, Brass, Bronze, Copper, Hardened Steel
Threading Location
External, Internal
Measurement System
Metric
Features
Deformation Resistant
Coating Process
PVD
Primary Material Application ISO Code
K, M, P, S
Thread Pitch
2.00mm to 5.00mm
ANSI Code
NT3RK
Chip-Breaker Style
Two Sides
Clearance Angle
15 Degrees
Thread Standard
Partial Profile 60 Degrees
Min. Thread Pitch
2.00mm
Cutting Application
Turning
Chip-Breaker Code
K
Thread Direction
Right Hand
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Product Family
Top Notch
Insert Holding Type
Top Clamp
Hole Type
No Hole
Included Angle
60 Degrees

Description

Threading Insert, NT, External, Internal, K, Cutting Direction Right Hand, Partial Profile 60 Degrees , Product Family Top Notch, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium
