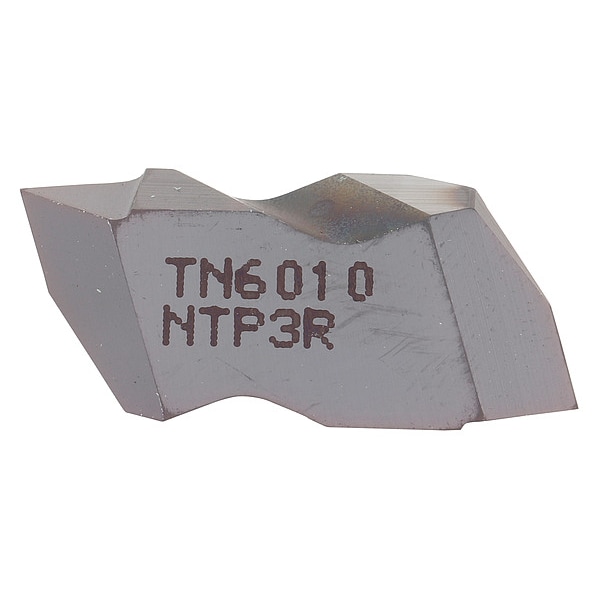

Widia Threading Insert, NT, NTP3R - main

Threading Insert, NT,

  • Mfr # NTP3R

  • Zoro # G3931494

product price: $28.49
/ea
Sold in multiples of 5 for $142.45

Key Features

Thread Type
60 Degree Partial
Style
Partial Profile
Insert Size
3
Chip-Breaker
No
Grade
TN6010
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NTP3R
Zoro #
G3931494
UPC #
4021169736582
Country of Origin
United States

Dimensions

Insert Size
3
Corner Radius
0.17mm
Thickness
8.74mm
Thread Height Difference
2.50mm

Details

Item
Threading Insert
Thread Type
60 Degree Partial
Style
Partial Profile
Chip-Breaker
No
Grade
TN6010
Cutting Direction
Right Hand
Insert Shape
Top Notch
Insert Type
NT
ISO Number
NTP3R
Manufacturer Grade
TN6010
Thread Profile Type
Partial
Material - Machining
Carbide
Thread Direction
Right Hand
Features
Deformation Resistant
Secondary Material Application
Aluminum, Brass, Bronze, Copper, Hardened Steel
Measurement System
Metric
Cutting Application
Turning
Min. Thread per Inch
6
Insert Style
NT
Product Family
Top Notch
Min. Thread Pitch
2.00mm
Secondary Material Application ISO Code
H, N
Thread Standard
UN
Thread Pitch
2.00mm to 5.00mm
Max. Thread Pitch
20
Included Angle
60 Degrees
Number of Cutting Edges
2
ANSI Code
NTP3R
Clearance Angle
15 Degrees
Primary Material Application ISO Code
K, M, P, S
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Threading Location
External, Internal
Hole Type
No Hole
Coating Process
PVD
Finish - Machining
TiAlN
Insert Holding Type
Top Clamp

Description

Threading Insert, NT, External, Internal, Cutting Direction Right Hand, UN, Product Family Top Notch, Primary Material Application Cast Iron, Nickel, Stainless Steel, Steel, Titanium
