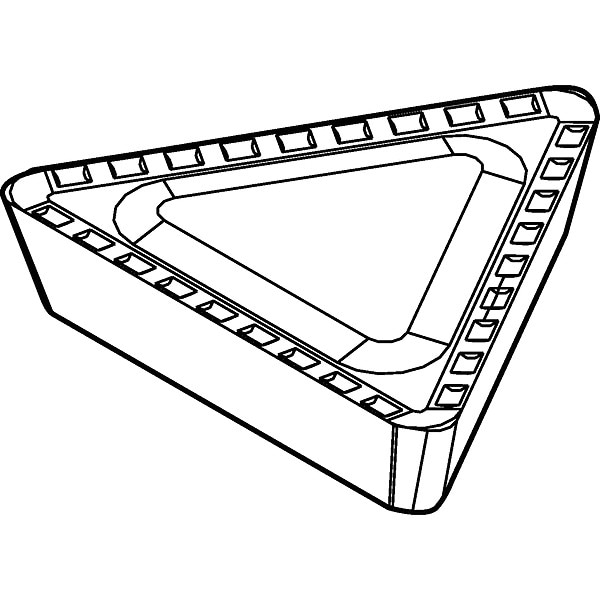

Widia Triangle Milling Insert, 1603, Carbide TPKR1603PDRMS - main

Triangle Milling Insert, 1603, Carbide

  • Mfr # TPKR1603PDRMS

  • Zoro # G3782220

product price: $13.89
/ea
Sold in multiples of 5 for $69.45

Key Features

Insert Material
Carbide
Insert Thickness
0.1250"
Grade
TTM08
Lead Angle
90 Degrees
Insert Size
1603
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TPKR1603PDRMS
Zoro #
G3782220
UPC #
4021169228988
Country of Origin
Germany

Dimensions

Insert Thickness
0.1250"
Insert Size
1603
Cutting Edge Length
16.50mm
Thickness
0.1250 in

Details

Insert Material
Carbide
Item
Triangle Milling Insert
Grade
TTM08
Lead Angle
90 Degrees
Cutting Direction
Right Hand
ISO Number
TPKR1603PDRMS
Series
TPKR
Insert Style
TPKR
Insert Shape
Triangle
Chip-Breaker
Yes
Mounting Style
Without Fixing Hole
Inscribed Circle
3/8 in
Manufacturer Grade
TTM08
Chip-Breaker Code
MS
Clearance Angle
11 Degrees
Primary Material Application ISO Code
P
Finish - Machining
Bright (Uncoated)
Measurement System
Fractional Inch
Wiper Insert
Yes
Included Angle
60 Degrees
Hole Type
No Hole
Secondary Material Application
Cast Iron, Stainless Steel
Primary Material Application
Steel
Insert Holding Type
Without Fixing Hole
Number of Cutting Edges
3
Secondary Material Application ISO Code
K, M
Cutting Application
Milling
Chip-Breaker Style
On One Side
Shape
Triangle
Material - Machining
Carbide
ANSI Code
TPKR1603PDRMS

Description

Triangle Milling Insert, Inscribed Circle 3/8 in, TPKR1603PDRMS, MS, On One Side, 11 Degrees
