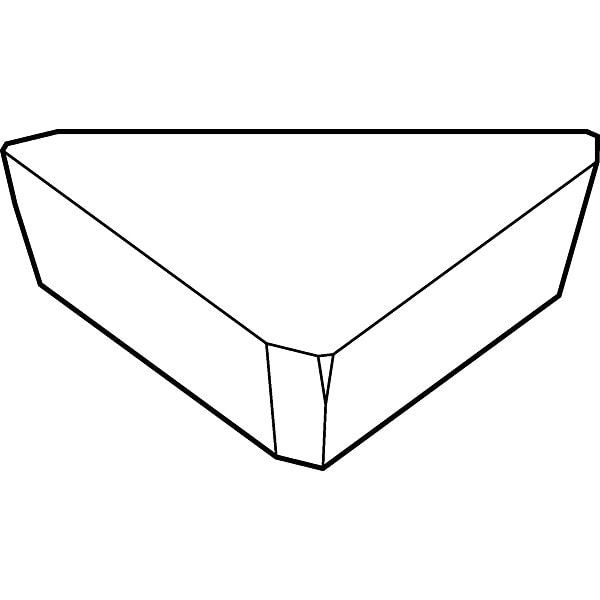

Triangle Positive Kendex Milling Insert
Mfr # TPKN2204PDR WP35CM
Zoro # G010444907
product price: $10.19
/eaSold in multiples of 5 for $50.95
Key Features
Insert Style
TPKN
Inscribed Circle
0.500 in
For Use With
Face Milling; Indexable Milling
ISO Number
TPKN2204PDR
Insert Size
220
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TPKN2204PDR WP35CM
Zoro #
G010444907
UPC #
4064182742956
Country of Origin
India
Dimensions
Insert Size
220
Depth of Cut
0.0282 in
Thickness
0.1875 in
Cutting Edge Length
0.8641 in
Details
Insert Style
TPKN
Inscribed Circle
0.500 in
For Use With
Face Milling; Indexable Milling
ISO Number
TPKN2204PDR
Item
Triangle Milling Insert
Cutting Application
Milling
Primary Material Application
Stainless Steel, Steel
Clearance Angle
11.5 Degrees
Secondary Material Application
Cast Iron, High-Temperature Alloys
Material - Machining
Carbide
Finish - Machining
TiN+TiCN+Al2O3
Coating Process
CVD
Number of Cutting Edges
3
Features
Existing Tool Bodies for Lower Tooling Costs
ANSI Code
TPKN2204PDR
Manufacturer Grade
WP35CM
Measurement System
Decimal Inch
Secondary Material Application ISO Code
K, S
Primary Material Application ISO Code
M, P
Description
Triangle Milling Insert, Inscribed Circle 0.500 in
