  9. Captive Screws Electrical Enclosures, 10 in H, 4 in D, 7 in W
Wiegmann Captive Screws Electrical Enclosures, 10 in H, 4 in D, 7 in W PBGX12 - main

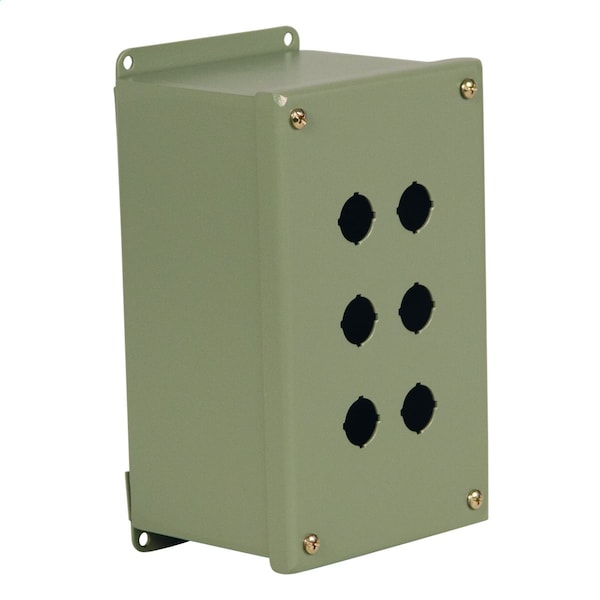

Captive Screws Electrical Enclosures, 10 in H, 4 in D, 7 in W

  • Mfr # PBGX12

  • Zoro # G7000326

product price: $193.99
/ea
Free Shipping & Returns

Key Features

Nominal Width
7 in
Nominal Height
10 in
Nominal Depth
4 in
Closure Method
Captive Screws
Metallic / Non-Metallic
Metallic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PBGX12
Zoro #
G7000326
UPC #
786725431960
Country of Origin
United States

Dimensions

Nominal Width
7 in
Nominal Height
10 in
Nominal Depth
4 in

Details

Item
Electrical Enclosures
Closure Method
Captive Screws
Metallic / Non-Metallic
Metallic
Color
Gray
Finish
Polyester Powder
Mounting
Wall
Series
PBGX
Solid / Clear Cover
Solid
Enclosure Cover Type
Screw On
Features
Fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" miniature pushbutton holes accept all standard brands of miniature push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided.
Standards
UL, CSA
Enclosure NEMA Rating
NEMA 12
Material of Enclosure
Carbon Steel
Number of Holes
12
Application
Designed to hold all standard brands of miniature oil-tight pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil, and water.
Weight
8 lb.
Capacity
280 cu.in
Enclosure Material
Carbon Steel
Cover Closure Type
Screw On
NEMA Enclosure Rating
NEMA 12
Cover Style
Solid

Description

Designed to hold all standard brands of miniature oil-tight pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil and water.
