CAD Viewer & Download Files

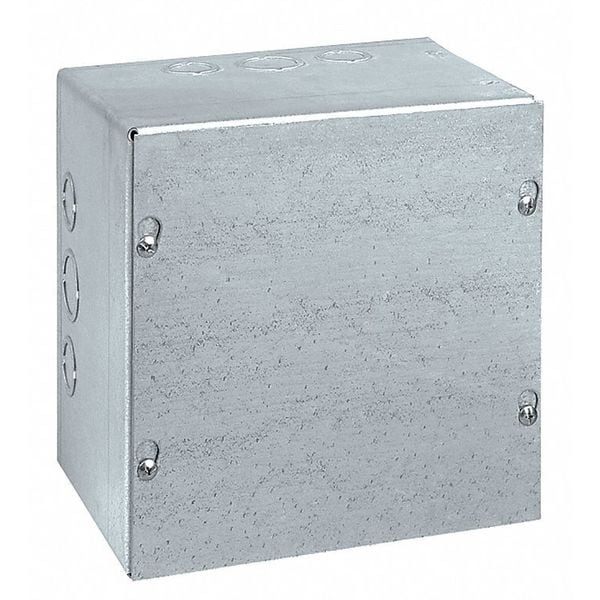

Captive Screws Electrical Enclosures, 6 in H, 6 in D, 6 in W, 1, Steel
Mfr # SC060606GNK
Zoro # G2698543
CAD Available
product price: $25.99
/eaKey Features
CAD Drawing
Nominal Width
6 in
Nominal Height
6 in
Nominal Depth
6 in
NEMA Enclosure Rating
1
Enclosure Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
SC060606GNK
Zoro #
G2698543
UPC #
786725316366
Country of Origin
Mexico
Dimensions
Nominal Width
6 in
Nominal Height
6 in
Nominal Depth
6 in
Usable Opening Depth
5.88 in
Body Material Thickness
16 ga
Description
Enclosure NEMA Rating 1, Material of Enclosure Galvanized Steel, 6 in, Screw On Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Screws, Finish Galvanized, Color Silver, Depth 6 in, Enclosure Cover Features Plated Steel Screws, Features Embossed Mounting Holes, Height 6 in, Includes Self-Tapping Screws, Metal Gauge 16 ga, Wall Mounting, Series SC-G, Standards CSA Certified, cULus, UL Listed, Usable Opening Depth 5.88 in, Width 6 in
