  5. Captive Screws Electrical Enclosures, 8 in H, 7 in D, 12 in W, 12, 13, Steel

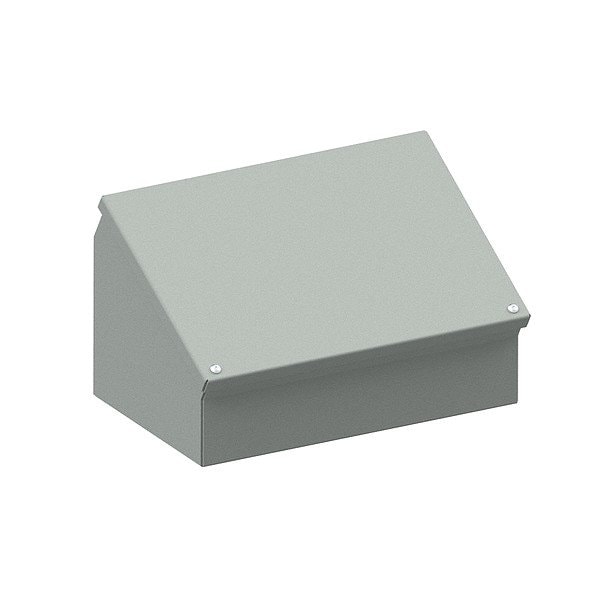

Wiegmann Captive Screws Electrical Enclosures, 8 in H, 7 in D, 12 in W, 12, 13, Steel WC08C12 - main

CAD Drawings

Download CAD Files

Captive Screws Electrical Enclosures, 8 in H, 7 in D, 12 in W, 12, 13, Steel

  • Mfr # WC08C12

  • Zoro # G2882774

CAD Available
product price:  $177.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Nominal Width
12 in
Nominal Height
8 in
Nominal Depth
7 in
NEMA Enclosure Rating
12, 13
Enclosure Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
WC08C12
Zoro #
G2882774
UPC #
786725441051
Country of Origin
United States

Dimensions

Nominal Width
12 in
Nominal Height
8 in
Nominal Depth
7 in
Usable Opening Depth
6.88 in

Details

Item
Electrical Enclosures
NEMA Enclosure Rating
12, 13
Enclosure Material
Steel
Closure Method
Captive Screws
Cover Closure Type
Screw On
Knockouts
No
Metallic / Non-Metallic
Metallic
Color
Gray
Finish
Polyester Powder
Mounting
Pedestal
Cover Style
Solid
Series
WC-C
Metal Gauge
14 ga
Gasket
Neoprene
Enclosure Cover Features
Captivated Cover Screws
Includes
Captive Cover Screws
Standards
CSA Certified, cULus, EU RoHS Compliant, UL Listed
Material
Carbon Steel
Features
Fabricated from carbon steel; Seams are continuously welded and ground smooth; Grounding provisions
Cover Type
Screw On
Application
Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees.
Gasket Material
Oil Resistant Neoprene
Includes Knockouts
Knockouts Not Included
CAD Available
Yes

Description

Sloped Top Enclosure, Metallic, No Knockouts, NEMA Rating 12, 13, Hinged Enclosure Cover Type, Height 8 In., Width 12 In., Depth 7 In., Material Carbon Steel, Enclosure Cover Features Captivated Cover Screws, Metal Gauge 14, Color Gray, Finish ANSI 61 Gray Polyester Powder, Neoprene Gasket, Series Consolets, Pedestal Mounting, Usable Opening Depth 3.5 In., Standards UL, CSA, NEMA, Includes Captivated Cover Screws
