  9. Console, 20 in. H x 24 in. W x 13 in. L, Stainless Steel
Wiegmann Console, 20 in. H x 24 in. W x 13 in. L, Stainless Steel WC20C24SS - main

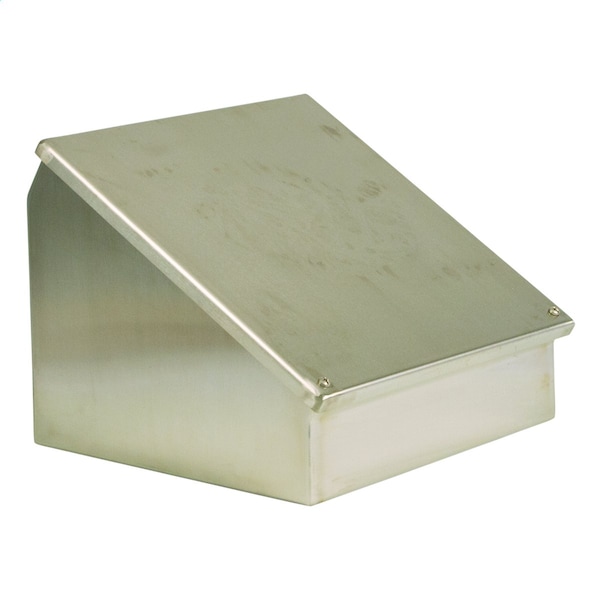

Console, 20 in. H x 24 in. W x 13 in. L, Stainless Steel

  • Mfr # WC20C24SS

  • Zoro # G7335565

product price: $2,440.99
/ea
Free Shipping & Returns

Key Features

Dimension
20 in. H x 24 in. W x 13 in. L
Height
20 in
Width
24 in
Knockouts
No
Type
Console
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WC20C24SS
Zoro #
G7335565
UPC #
786725849567
Country of Origin
United States

Dimensions

Dimension
20 in. H x 24 in. W x 13 in. L
Height
20 in
Width
24 in
Depth
13 in
Length
13 in
Each - Width
24.000 in
Actual Depth
13.09 in

Details

Item
Console
Knockouts
No
Type
Console
Mounting
Grounding Provisions
Material
Stainless Steel
NEMA Enclosure Type
NEMA 12
Application
Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees.
Features
Fabricated from 304 stainless steel; Seams are continuously welded and ground smooth; Grounding provisions
Construction
Continuously Welded Seams
Special Features
Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
Series
WC-SS
Certified Listed
cULus
Listings
UL, CSA
Cover Type
Screw Cover
Nema Rating
12
UL Listed
Yes
Standard
cULus
Cubic Capacity
6240 cu.in
Mounting Type
Grounding Provisions

Description

Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either or two sides, creating control surfaces of 30 degrees or 60 degrees. Consolets can be mounted on desktops, pedestals, or other flat surfaces.
