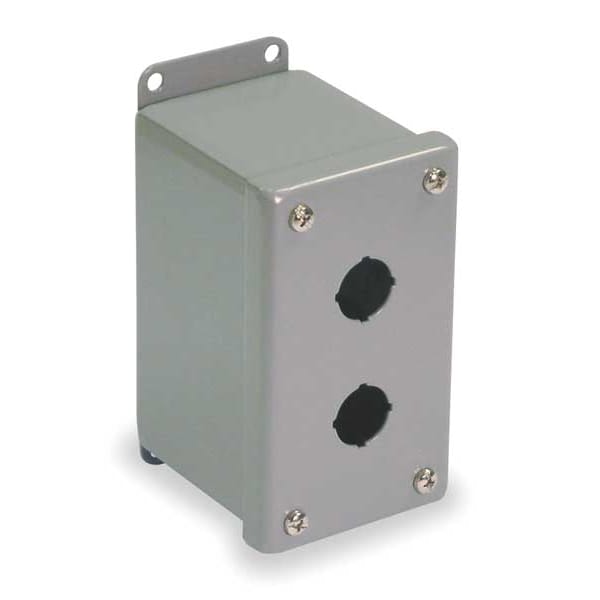

Wiegmann Pushbutton Enclosure, 30mm, 2 Holes, Steel PBXD2 - main

Pushbutton Enclosure, 30mm, 2 Holes, Steel

  • Mfr # PBXD2

  • Zoro # G1903614

product price:  $98.79
/ea
Free Shipping & Returns

Key Features

Number of Columns
1
Hole Size
30 mm
Material
Carbon Steel
Conduit Size
No Conduit Entrance Holes Provided
Number of Holes
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PBXD2
Zoro #
G1903614
UPC #
786725431151
Country of Origin
United States

Dimensions

Hole Size
30 mm
Conduit Size
No Conduit Entrance Holes Provided
Dimensions
6.00 in H x 4.00 in W x 4.81 in D
Height
6 in
Width
4 in
Depth
4.81 in
Panel Cutout Diameter
30 mm
Overall Width
4 3/8 in
Overall Height
6 5/16 in
Overall Depth
5 1/8 in
Compatible Conduit Size - Maximum
No Conduit Entrance Holes Provided

Details

Item
Push Button Enclosure
Number of Columns
1
Material
Carbon Steel
Number of Holes
2
NEMA Rating
12, 13
Color
Gray
Standards
cULus, UL Listed
Type
Extra Deep
Mounting Style
External Plates
Includes
Captive Cover Screws, Closed Cell Oil Resistant Gasket
Finish Type
Polyester Powder
Mounting
External Mounting Plates
Cover Type
Pushbutton;Screw
Construction
Continuously Welded Seams
Application
Designed to hold 30.5mm oil-tight pushbuttons, switches, and pilot lights. Provide protection against dirt, dust, oil, and water. Extra deep design accommodates additional contact blocks for pushbuttons.
Standard
cULus
Mounting Type
External Mounting Plates
Cubic Capacity
144 cu.in
Listings
UL, CSA
UL Listed
Yes
Certified Listed
cULus
Series
PBXD
Features
Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided.
NEMA Enclosure Rating
4

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 2, NEMA Rating 12, 13, Conduit Size No Conduit Entrance Holes Provided, Dimensions 6.00 in H x 4.00 in W x 4.81 in D, Hole Size 30 mm, Material Carbon Steel, Height 6 in, Width 4 in, Depth 4.81 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Extra Deep, Mounting Style External Plates, Standards cULus, UL Listed
