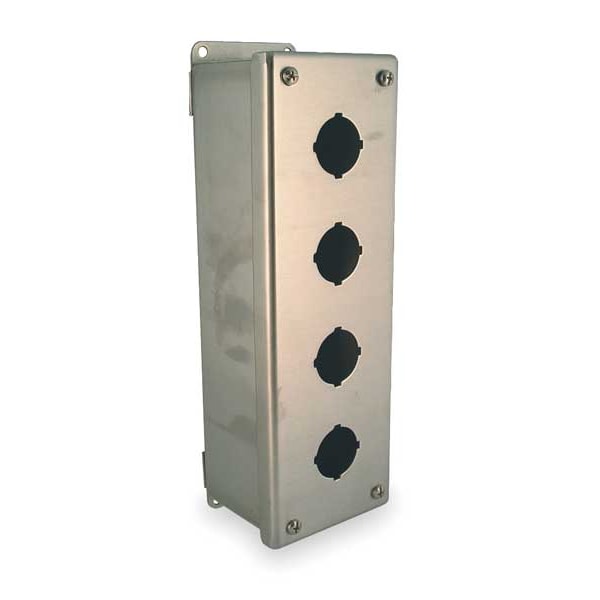

Wiegmann Pushbutton Enclosure, 30mm, 4 Holes, 304 SS PBSS4 - main

Pushbutton Enclosure, 30mm, 4 Holes, 304 SS

  • Mfr # PBSS4

  • Zoro # G0590353

product price: $234.99
/ea
Free Shipping & Returns

Key Features

Number of Columns
1
Hole Size
30 mm
Material
304 Stainless Steel
Conduit Size
No Conduit Entrance Holes Provided
Number of Holes
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PBSS4
Zoro #
G0590353
UPC #
786725433209
Country of Origin
United States

Dimensions

Hole Size
30 mm
Conduit Size
No Conduit Entrance Holes Provided
Dimensions
10.25 in H x 3.25 in W x 2.81 in D
Height
10.25 in
Width
3.25 in
Depth
2.81 in
Actual Depth
2.81 in
Pushbutton Size
30.5 MM
Actual Height
10.250 in
Actual Width
3.250 in
Overall Width
3 in
Compatible Conduit Size - Maximum
No Conduit Entrance Holes Provided
Panel Cutout Diameter
30 mm
Overall Depth
3 in
Overall Height
10 in

Details

Item
Push Button Enclosure
Number of Columns
1
Material
304 Stainless Steel
Number of Holes
4
NEMA Rating
12, 13, 4, 4X
Color
Silver
Type
Oil Tight
Includes
Neoprene Gasket
Standards
cULus, UL Listed
Mounting Style
External Plates
Pushbutton Number of Holes
4
UL Listed
Yes
Cover Type
Pushbutton
Mounting
External Mounting Plates
Series
PBSS
Cubic Capacity
90 cu.in
Mounting Type
External Mounting Plates
Knockouts
No
Construction
Continuously Welded Seams
Application
Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil, and water. PBSS Series designed for areas where serious corrosion problems exist.
Listings
UL, CSA
Standard
cULus
Certified Listed
cULus
Features
Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight push buttons, switches, and pilot lights. Grounding provisions provided.
NEMA Enclosure Rating
4X

Description

Push Button Enclosure, Number of Columns 1, Number of Holes 4, NEMA Rating 12, 13, 4, 4X, Conduit Size No Conduit Entrance Holes Provided, Dimensions 10.25 in H x 3.25 in W x 2.81 in D, Hole Size 30 mm, Material 304 Stainless Steel, Height 10.25 in, Width 3.25 in, Depth 2.81 in, Color Silver, Includes Neoprene Gasket, Type Oil Tight, Mounting Style External Plates, Standards cULus, UL Listed
