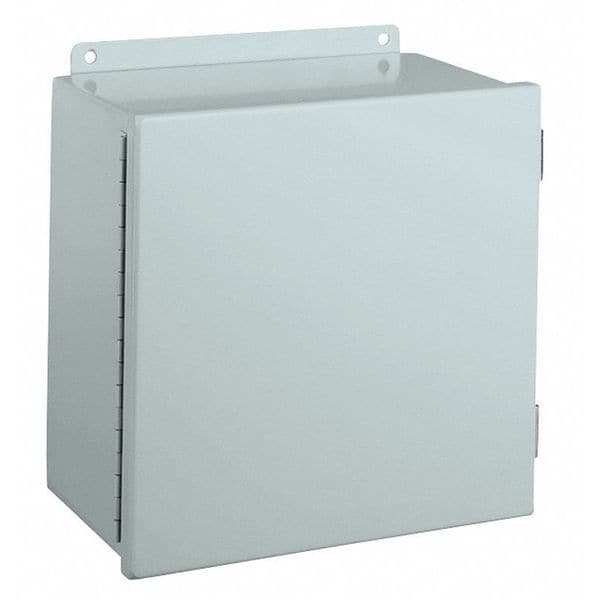

Screw Clamps Electrical Enclosures, 8 in H, 6 in D, 6 in W, 12, 13, Steel
Mfr # B080606CH
Zoro # G0911531
CAD Available
product price:Â
$
117.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Nominal Width
6 in
Nominal Height
8 in
Nominal Depth
6 in
NEMA Enclosure Rating
12, 13
Enclosure Material
Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- B080606CH
- Zoro #
- G0911531
- UPC #
- 786725331420
- Country of Origin
- United States
Dimensions
- Nominal Width
- 6 in
- Nominal Height
- 8 in
- Nominal Depth
- 6 in
- Usable Opening Depth
- 5.88 in
- Cover Material Thickness
- 16 ga
- Body Material Thickness
- 14 ga
Description
Enclosure NEMA Rating 12, 13, Material of Enclosure Carbon Steel, 6 in, Hinged Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Clamps, Screws, Finish ANSI 61 Powder Coated, Color Gray, Depth 6 in, Enclosure Cover Features Screwdown Clamps, Features External Mounting Plates, Neoprene Gasket, Height 8 in, Interior Panel 3A926, Metal Gauge 14/16 ga, Wall Mounting, Series B-CH, Standards CSA Certified, cULus, UL Listed, Usable Opening Depth 5.88 in, Width 6 in
