Shop WIEGMANN

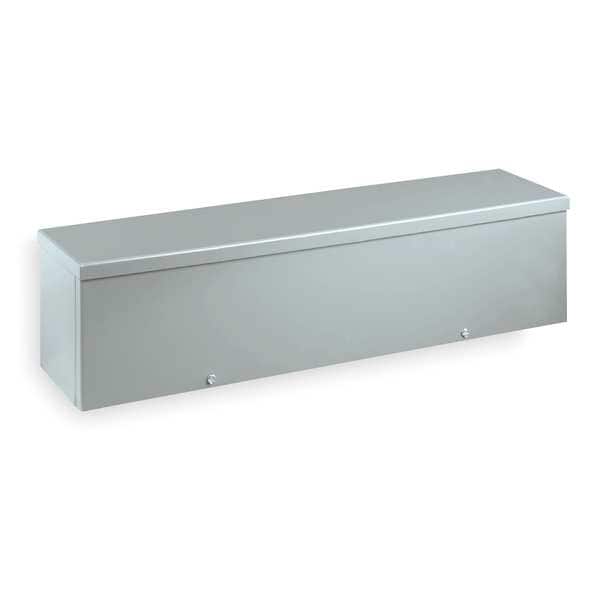

Wiring Trough, 3R Rating, Carbon Steel, ANSI 61 Polyester Powder

  • Mfr # RSCG060648

  • Zoro # G2697116

product price:
$
432.99
/ea
Free Shipping & Returns

Key Features

Finish
ANSI 61 Polyester Powder
Height
6 in
Width
6 in
NEMA Rating
3R
Material
Carbon Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RSCG060648
Zoro #
G2697116
UPC #
786725408658
Country of Origin
United States

Dimensions

Height
6 in
Width
6 in
Nominal Enclosure Width
48 in
Usable Opening Depth
5.88 in
Depth
48 in
Overall Depth
6 in
Overall Height
6 in
Overall Width
48 in
Actual Width
6.060 in
Actual Height
6.060 in
Actual Length
48.13 in
Each - Width
6.060 in
Actual Depth
48.130 in
Nominal Height
6 in
Cover Material Thickness
16 ga
Nominal Depth
6 in
Nominal Width
48 in
Body Material Thickness
16 ga

Details

Item
Wiring Trough
Finish
ANSI 61 Polyester Powder
NEMA Rating
3R
Material
Carbon Steel
Metal Gauge
16 ga
Closure Method
Screws
Solid / Clear Cover
Solid
Includes
Screws
Knockouts
Yes
Standards
CSA Certified, cULus, EU RoHS Indicator, UL Listed
Enclosure Cover Type
Screw On
Series
RSCG
Color
Gray
Basic Material
Metallic
Material of Enclosure
Carbon Steel
Enclosure NEMA Rating
3R
Knockouts / No Knockouts
Knockouts
Mounting
Wall
Item - Electrical Enclosure
Wiring Trough
Metallic / Non-Metallic
Metallic
Enclosure Cover Features
Drip Shield Top
Application
Designed to protect wiring in outdoor installations against rain, sleet and snow, or indoors against dripping water.
Product Type
Wiring Trough Enclosure
Features
Trough and cover fabricated from 16 gauge carbon steel; Drip shield top and smooth seamless sides, front and back, prevent rain, snow and sleet from entering the enclosure; Embossed mounting holes are conveniently located on the back; A slip-on removable cover is securely fastened with screws located along the bottom edge; Knockouts are provided on bottom of enclosure
Material type
Carbon Steel
Cubic Capacity
1728 cu.in
Construction
Spot and Tack Welded
Standard
cULus
Cable Entry
Knock Outs
Type
Gutter
Finish Type
Polyester Powder
Listings
UL, CSA
Mounting Type
Embossed Mounting Holes
Certified Listed
cULus
UL Listed
Yes
NEMA Enclosure Rating
3R
Includes Knockouts
Knockouts Included
Latch Type
Screws
Cover Closure Type
Screw On
Enclosure Material
Steel

Description

Enclosure, Wiring Trough, Screw Cover Type, NEMA Rating 3R, Material of Construction Carbon Steel, 16 Gauge (Steel), Height 6 In, Width 6 In, Depth 48 In, Finish ANSI 61 Gray Polyester Powder, Mounting Holes, Color Gray, Standards UL,CSA
