  11. Air Line Lubricator, 1 In, 374 cfm, 200 psi
Shop All Pneumatic Lubricators
Wilkerson

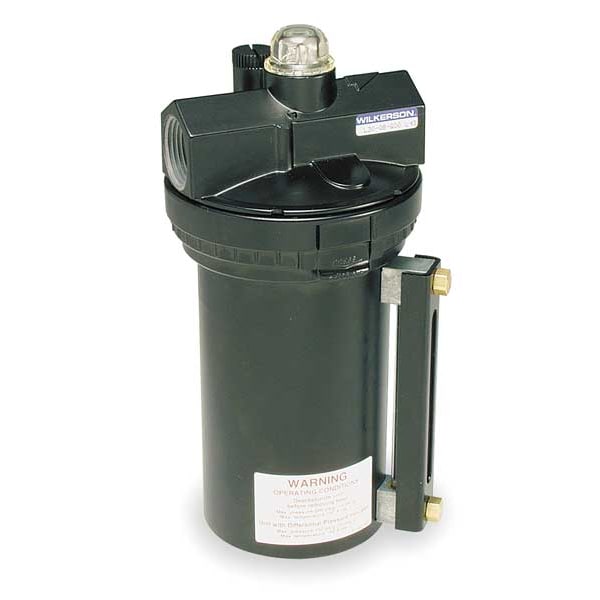

Air Line Lubricator, 1 In, 374 cfm, 200 psi

product price: $182.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series L30
  • Bowl Material Metal
  • Pipe Size 1 in NPT
  • Max. Flow 374 cfm
  • Max. Pressure 200 psi
See all product information

Product Information

Dimensions

Pipe Size 1 in NPT
Overall Height 10 15/16 in
Overall Width 4 5/8 in
Bowl Size 26 oz
Overall Length 4.63 in
Air Inlet Size 1 in
Air Outlet Size 1 in
Overall Depth 4 13/16 in

Details

Item Compressed Air Lubricator
Series L30
Bowl Material Metal
Max. Flow 374 cfm
Max. Pressure 200 psi
Sight Dome Included Yes
Max. Temp. 150 Degrees F
Body Material Zinc
Oil Feed Type Mist
Adjustment Type Screwdriver
Dome Material Nylon
For Fluid Type Compressed Air
System Location Air Line
Lubricator Bowl Material Metal
Maximum Flow Rate 374 cfm
Seal Material Fluorocarbon
Air Inlet Type NPT
Oil Capacity 26 oz
Pressure Drop 5 psi
Maximum Operating Pressure 200 psi
Sight Gauge Included Yes
Air Outlet Type NPT
Minimum Operating Temperature 32 Degrees F
Adjustment Mechanism Screwdriver
Includes Bowl and Sight Gauge, Quick-Disconnect Clamp Ring, Siphon Tube Filter
For Substance Type Air
Lubricator Bowl Capacity 26 oz
Maximum Operating Temperature 150 Degrees F
Number of Air Outlets 1
Number of Air Inlets 1
Weight 5.6 lb
Lubricator Type Mist
Lubricator Bowl Guard Included No
Recommended Lubricant Airline Oil F442001

Description

Compressed Air Lubricator, Lubricator Type Mist, Lubricator Bowl Material Metal, Air Inlet Size 1 in, Air Inlet Type NPT, Maximum Flow Rate 374 cfm, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 150 Degrees F, Adjustment Mechanism Screwdriver, Body Material Zinc, Overall Width 4 5/8 in, Series L30, Sight Dome Included Yes, Sight Gauge Included Yes, Air Outlet Size 1 in, Air Outlet Type NPT, For Fluid Type Compressed Air, For Substance Type Air
