Shop All Pneumatic Lubricators
Wilkerson

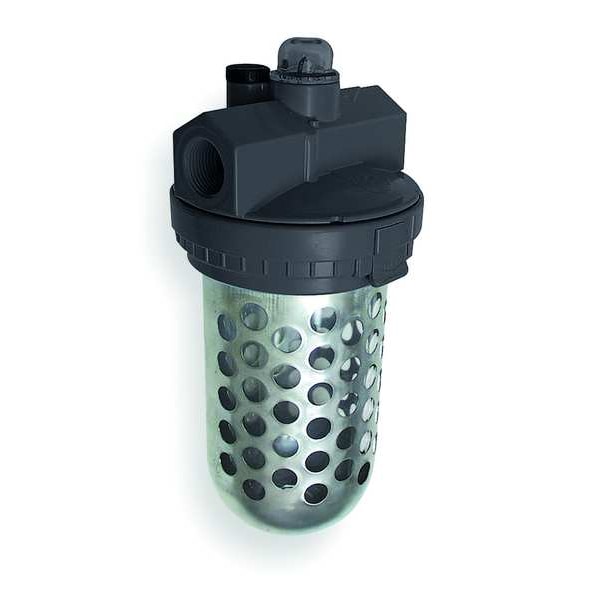

Air Line Lubricator, 3/4In, 196cfm, 150 psi

product price: $172.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series L30
  • Bowl Material Plastic
  • Pipe Size 3/4 in NPT
  • Max. Flow 196 cfm
  • Max. Pressure 150 psi
See all product information

Product Information

Dimensions

Pipe Size 3/4 in NPT
Overall Height 10 3/8 in
Overall Width 4 5/8 in
Overall Length 4.63 in
Bowl Size 26 oz
Air Inlet Size 3/4 in
Overall Depth 4 13/16 in
Air Outlet Size 3/4 in

Details

Item Compressed Air Lubricator
Series L30
Bowl Material Plastic
Max. Flow 196 cfm
Max. Pressure 150 psi
Oil Feed Type Mist
Max. Temp. 125 Degrees F
Body Material Zinc
Adjustment Type Screwdriver
Sight Dome Included Yes
Dome Material Nylon
Pressure Drop 5 psi
Weight 5.6 lb
Includes (1) Bowl and Guard, Quick-Disconnect Clamp Ring, Siphon Tube Filter
For Substance Type Air
Lubricator Bowl Capacity 26 oz
Recommended Lubricant Airline Oil F442001
Maximum Operating Pressure 150 psi
System Location Air Line
Sight Gauge Included Yes
Adjustment Mechanism Screwdriver
Lubricator Bowl Guard Included Yes
For Fluid Type Compressed Air
Lubricator Type Mist
Lubricator Bowl Material Polycarbonate
Maximum Operating Temperature 125 Degrees F
Oil Capacity 26 oz
Maximum Flow Rate 196 cfm
Number of Air Outlets 1
Air Outlet Type NPT
Number of Air Inlets 1
Air Inlet Type NPT
Minimum Operating Temperature 32 Degrees F
Seal Material Nitrile Rubber

Description

Compressed Air Lubricator, Lubricator Type Mist, Lubricator Bowl Material Polycarbonate, Air Inlet Size 3/4 in, Air Inlet Type NPT, Maximum Flow Rate 196 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Adjustment Mechanism Screwdriver, Body Material Zinc, Overall Width 4 5/8 in, Series L30, Sight Dome Included Yes, Sight Gauge Included Yes, Air Outlet Size 3/4 in, Air Outlet Type NPT, For Fluid Type Compressed Air, For Substance Type Air
