Wilkerson

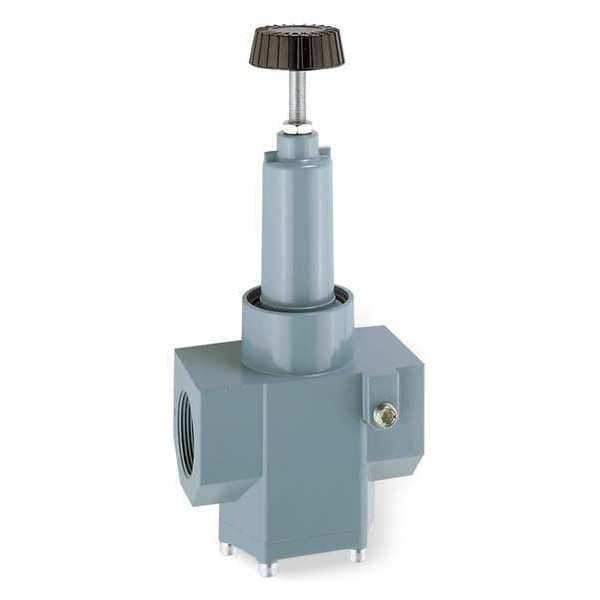

Air Regulator, 1-1/2 In. NPT, 1,200 cfm

original price: $284.11
16% off
new price: $236.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size - Regulators 1 1/2 in
  • Max. Inlet Pressure - Regulators 300 psi
  • Adjustment Range - Regulators 10 to 125 psi
  • Max. Temp. - Regulators 150 Degrees F
  • Overall Height - Regulators 11.9 in
See all product information

Product Information

Dimensions

Pipe Size - Regulators 1 1/2 in
Overall Height - Regulators 11.9 in
Overall Width (Regulators) 5.30"
Overall Height (Regulators) 11.90"
Overall Width - Regulators 5.3 in
Pipe Size (Regulators) 1-1/2"
Overall Height 11 7/8 in
Overall Width 5 5/16 in
Pressure Gauge Port Size 1/4 in
Overall Depth 3 5/8 in
Air Outlet Size 1 1/2 in
Air Inlet Size 1 1/2 in
Height 11.9"

Details

Item Compressed Air Regulator
Max. Inlet Pressure - Regulators 300 psi
Adjustment Range - Regulators 10 to 125 psi
Max. Temp. - Regulators 150 Degrees F
Series R40
Max. Flow (Regulators) 1200 cfm
Max. Temp. (Regulators) 150 Degrees F
Adjustment Knob Rising
Max. Inlet Pressure (Regulators) 300 psi
Compressed Air Regulator Product Grouping General Purpose Air Regulator
Adjustment Range (Regulators) 10 to 125 psi
Gauge Port 1/4 in NPT
Max. Flow - Regulators 1,200 cfm
Body Material Zinc
For Substance Type Air
Seal Material Nitrile
Air Inlet Gender Female
Pressure Gauge Port Type NPT
Weight 10.8 lb
Maximum Flow Rate 1,200 cfm
Pressure Drop 15 psig
Maximum Operating Temperature 150 Degrees F
Minimum Operating Temperature 32 Degrees F
Adjustment Mechanism Knob
Maximum Operating Pressure 300 psi
Air Inlet Type NPT
Air Outlet Gender Female
System Location Air Line
Maximum Regulated Pressure 125 psi
Minimum Regulated Pressure 10 psi
Regulator Type Relieving
Air Outlet Type NPT
For Fluid Type Air
Number of Air Inlets 1
Pressure Gauge Included No
Number of Air Outlets 1
Type Modular

Description

Compressed Air Regulator, Air Inlet Size 1 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 1,200 cfm, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 150 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 5 5/16 in, System Location Air Line, Series R40, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1 1/2 in, Air Outlet Type NPT, Body Material Zinc, For Fluid Type Air, For Substance Type Air, Maximum Regulated Pressure 125 psi
