Wilkerson

Air Regulator, 1 In. NPT, 500 cfm, 300 psi

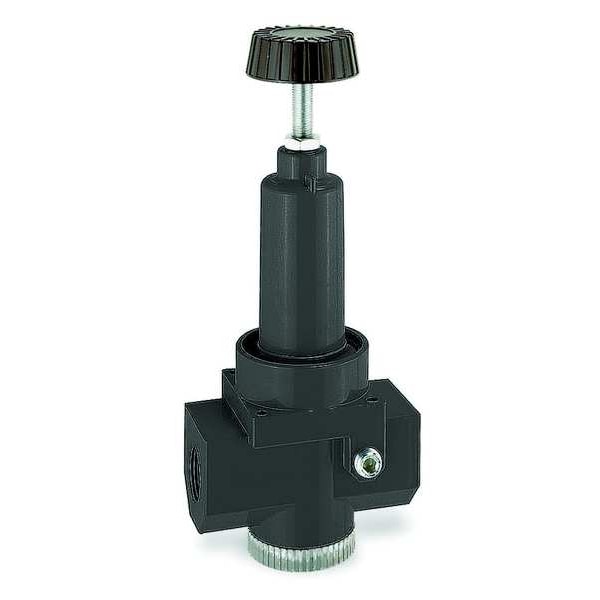

Wilkerson Air Regulator, 1 In. NPT, 500 cfm, 300 psi R30-08-000
Tap to zoom
Hover or click to zoom
$126.51
  • Item: Compressed Air Regulator
  • Pipe Size - Regulators: 1 in
  • Max. Inlet Pressure - Regulators: 300 psi
See full product details
This item ships free.

Total: $126.51

Wilkerson #R30-08-000 Specifications

  • Item: Compressed Air Regulator
  • Pipe Size - Regulators: 1 in
  • Max. Inlet Pressure - Regulators: 300 psi
  • Adjustment Range - Regulators: 10 to 125 psi
  • Max. Temp. - Regulators: 150 Degrees F
  • Overall Height - Regulators: 10.3 in
  • Adjustment Range (Regulators): 10 to 125 psi
  • Adjustment Knob: Rising
  • Overall Width (Regulators): 4.30"
  • Overall Width - Regulators: 4.3 in
  • Pipe Size (Regulators): 1"
  • Series: Jumbo
  • Compressed Air Regulator Product Grouping: General Purpose Air Regulator
  • Overall Height (Regulators): 10.30"
  • Max. Flow (Regulators): 500 cfm
  • Max. Flow - Regulators: 500 cfm
  • Gauge Port: 1/4 in NPT
  • Max. Temp. (Regulators): 150 Degrees F
  • Max. Inlet Pressure (Regulators): 300 psi
  • Body Material: Zinc
  • Air Outlet Gender: Female
  • Overall Height: 10 5/16 in
  • For Fluid Type: Air
  • Regulator Type: Relieving
  • Overall Width: 4 5/16 in
  • Air Outlet Size: 1 in
  • Air Outlet Type: NPT
  • Air Inlet Size: 1 in
  • Number of Air Inlets: 1
  • For Substance Type: Air
  • Seal Material: Nitrile
  • Weight: 6 lb
  • Maximum Operating Temperature: 150 Degrees F
  • Maximum Flow Rate: 500 cfm
  • Maximum Operating Pressure: 300 psi
  • Pressure Gauge Included: No
  • Minimum Regulated Pressure: 10 psi
  • Adjustment Mechanism: Knob
  • Pressure Drop: 15 psig
  • Pressure Gauge Port Size: 1/4 in
  • Inlet Size (Combined): 1 in NPT
  • Minimum Operating Temperature: 32 Degrees F
  • Air Inlet Type: NPT
  • Regulator Body Material: Aluminum or Zinc
  • Maximum Regulated Pressure: 125 psi
  • Pressure Control Range (Combined): 10 psi to 125 psi
  • Number of Air Outlets: 1
  • Air Inlet Gender: Female
  • Pressure Gauge Port Type: NPT
  • Overall Depth: 2 5/8 in
  • System Location: Air Line
  • Country of Origin (subject to change): United States

Description

General Purpose Air Regulator, Pipe Size - Regulators 1 in, Max. Flow - Regulators 500 cfm, Max. Inlet Pressure - Regulators 300 psi, Max. Temp. - Regulators 150 Degrees F, Adjustment Range - Regulators 10 to 125 psi, Rising Adjustment Knob, 1/4 in NPT Gauge Port, Jumbo Series, Overall Height - Regulators 10.3 in, Overall Width - Regulators 4.3 in
