  11. Air Regulator, 1/4 In. NPT, 12 cfm, 300 psi
Wilkerson

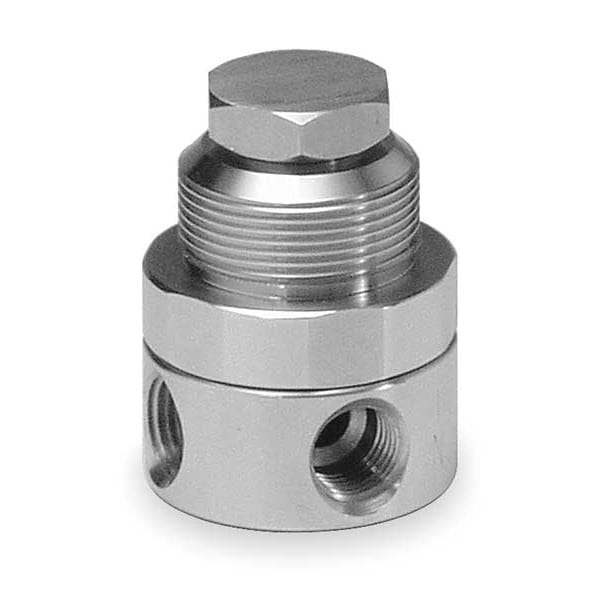

Air Regulator, 1/4 In. NPT, 12 cfm, 300 psi

Wilkerson Air Regulator, 1/4 In. NPT, 12 cfm, 300 psi SR1-02-KAS0
Hover or click to zoom Tap to zoom
$355.25
  • Item: Compressed Air Regulator
  • Pipe Size - Regulators: 1/4 in
  • Max. Inlet Pressure - Regulators: 300 psi
See full product details
This item ships free.
Total: $355.25

Wilkerson #SR1-02-KAS0 Specifications

  • Item: Compressed Air Regulator
  • Pipe Size - Regulators: 1/4 in
  • Max. Inlet Pressure - Regulators: 300 psi
  • Adjustment Range - Regulators: 0 to 60 psi
  • Max. Temp. - Regulators: 150 Degrees F
  • Overall Height - Regulators: 2.67 in
  • Pipe Size (Regulators): 1/4"
  • Overall Width (Regulators): 1.56"
  • Overall Height (Regulators): 2.67"
  • Gauge Port: 1/4 in NPT
  • Adjustment Range (Regulators): 0 to 60 psi
  • Overall Width - Regulators: 1.56 in
  • Compressed Air Regulator Product Grouping: General Purpose Air Regulator
  • Max. Inlet Pressure (Regulators): 300 psi
  • Overall Length: 1.56 in
  • Adjustment Knob: Hex
  • Max. Temp. (Regulators): 150 Degrees F
  • Max. Flow - Regulators: 12 cfm
  • Valve Design: Un-Balanced
  • Series: Miniature
  • Max. Flow (Regulators): 12 cfm
  • Body Material: Stainless steel
  • Weight: 0.5 lb
  • For Fluid Type: Air
  • Overall Height: 2 11/16 in
  • Air Inlet Size: 1/4 in
  • Regulator Body Material: Stainless Steel
  • Maximum Regulated Pressure: 60 psi
  • Minimum Operating Temperature: 0 Degrees F
  • Adjustment Mechanism: Knob
  • Pressure Control Range (Combined): 0 psi to 60 psi
  • Pressure Gauge Port Size: 1/4 in
  • Air Inlet Type: NPT
  • Number of Air Outlets: 1
  • Air Outlet Gender: Female
  • Overall Width: 1 9/16 in
  • Maximum Operating Temperature: 180 Degrees F
  • Minimum Regulated Pressure: 0 psi
  • Adjustment Mechanism Material: 316 Stainless Steel
  • Regulator Type: Relieving
  • Pressure Drop: 15 psig
  • Seal Material: Fluorocarbon
  • Pressure Gauge Included: No
  • System Location: Air Line
  • Air Outlet Type: NPT
  • Overall Depth: 1 9/16 in
  • Air Inlet Gender: Female
  • Air Outlet Size: 1/4 in
  • Inlet Size (Combined): 1/4 in NPT
  • Pressure Gauge Port Type: NPT
  • Number of Air Inlets: 1
  • Maximum Operating Pressure: 300 psi
  • For Substance Type: Air
  • Maximum Flow Rate: 12 cfm
  • Country of Origin (subject to change): United States

Description

General Purpose Air Regulator, Pipe Size - Regulators 1/4 in, Max. Flow - Regulators 12 cfm, Max. Inlet Pressure - Regulators 300 psi, Max. Temp. - Regulators 150 Degrees F, Adjustment Range - Regulators 0 to 60 psi, Hex Adjustment Knob, 1/4 in NPT Gauge Port, Miniature Series, Un-Balanced Valve Design, Overall Height - Regulators 2.67 in, Overall Width - Regulators 1.56 in, Overall Length 1.56 in, Body Material Stainless Steel
