Wilkerson

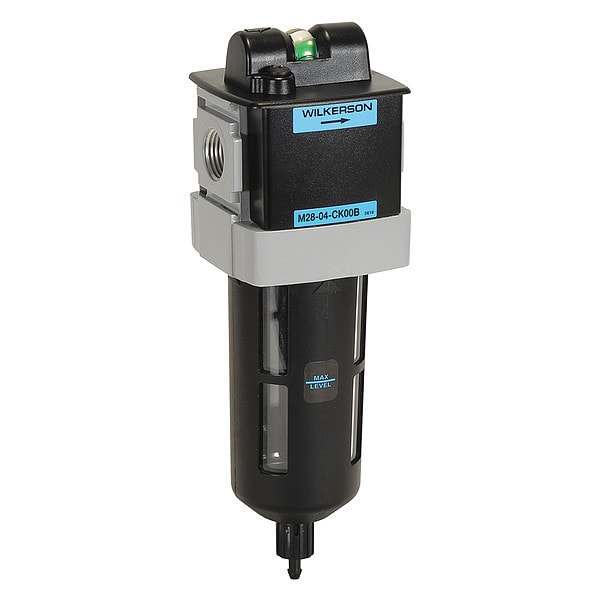

Compressed Air Filter, 0.5 micron Rating

product price: $111.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size - Air Treatment Standard
  • Overall Width 2 7/8 in
  • Bowl Material - Air Treatment Polycarbonate with Guard
  • Overall Depth 2 7/8 in
  • Max. Incoming Pressure - Air Treatment 150 psi
See all product information

Product Information

Dimensions

Size - Air Treatment Standard
Overall Width 2 7/8 in
Overall Depth 2 7/8 in
Connection Size - Air Treatment 3/8 in NPT
Drain Port Size 3/16 in
Bowl Size - Air Treatment 3.0 oz
Overall Height 9 1/4 in
Air Inlet Size 3/8 in
Air Outlet Size 3/8 in

Details

Bowl Material - Air Treatment Polycarbonate with Guard
Item - Air Filters Compressed Air Filter
Max. Incoming Pressure - Air Treatment 150 psi
Includes Differential Pressure Indicator
Max. Flow - Air Treatment 120 cfm
For Removal Of Aerosol, Mist, Oil Fog, Particles
Item Compressed Air Filter
Max. Temp. 125 Degrees F
Filter Rating 0.5 micron
Filter Rating - Air Treatment 0.5 micron
Drain Type Manual
Weight 1.1 lb
For Fluid Type Oil, Water
Minimum Operating Temperature -13 Degrees F
Series M28
Maximum Operating Pressure 150 psi
Drain Included Yes
Maximum Flow Rate 72 cfm
Filter Type Coalescing
Modular Connection Modular Connection
Filter Bowl Material Plastic
Body Material Aluminum
Maximum Operating Temperature 125 Degrees F
For Substance Type Oil Aerosols, Solid Particulate, Water
System Location Air Line
Air Outlet Type NPT
Pressure Drop 3 psig
Number of Air Outlets 1
Filter Bowl Capacity 2.87 oz
ISO Class 2, 3
Filter Element Material Borosilicate Cloth
Number of Air Inlets 1
Air Inlet Type NPT
Filter Bowl Guard Included Yes
Seal Material Nitrile
Gauge Included No

Description

Compressed Air Filter, Filter Type Coalescing, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 72 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Overall Width 2 7/8 in, Overall Height 9 1/4 in, Drain Included Yes, Filter Bowl Material Plastic, Drain Type Manual, Series M28, Air Outlet Size 3/8 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 2.87 oz, Filter Bowl Guard Included Yes, Filter Element Material Borosilicate Cloth

Restrictions

  • WARNING: This product can expose you to chemicals including Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
