  11. Compressed Air Filter, 0.5 micron Rating, Overall Width: 1.56 in
Shop All Compressor Air Filters
Wilkerson

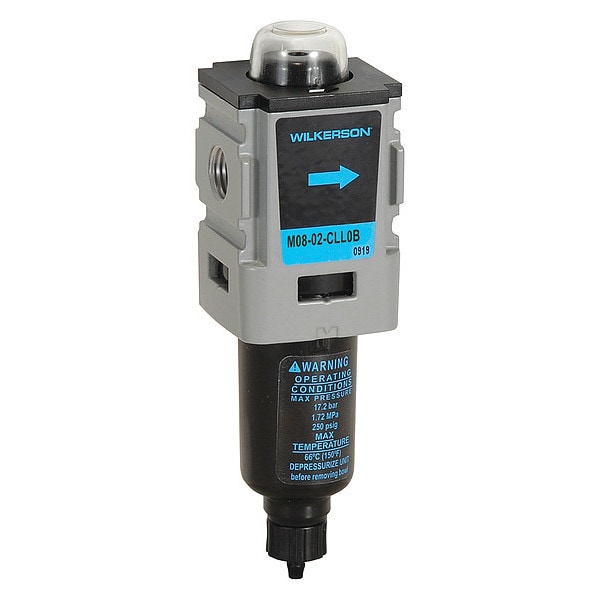

Compressed Air Filter, 0.5 micron Rating, Overall Width: 1.56 in

product price: $52.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 1/4 in NPT
  • Max. Temp. 150 Degrees F
  • Drain Type Manual
  • Bowl Size - Air Treatment 0.6 oz
  • Size - Air Treatment Subcompact
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/4 in NPT
Bowl Size - Air Treatment 0.6 oz
Size - Air Treatment Subcompact
Drain Port Size 3/16 in
Overall Width 1 9/16 in
Overall Depth 1 9/16 in
Overall Height 4 15/16 in
Air Inlet Size 1/4 in
Air Outlet Size 1/4 in

Details

Max. Temp. 150 Degrees F
Drain Type Manual
Max. Incoming Pressure - Air Treatment 250 psi
Filter Rating 0.5 micron
For Removal Of Aerosol, Mist, Oil Fog, Particles
Item - Air Filters Compressed Air Filter
Max. Flow - Air Treatment 20 cfm
Item Compressed Air Filter
Bowl Material - Air Treatment Metal
Filter Rating - Air Treatment 0.5 micron
Weight 0.24 lb
Air Outlet Type NPT
Minimum Operating Temperature 14 Degrees F
Body Material Aluminum
Filter Bowl Material Metal
Filter Bowl Guard Included Yes
Filter Bowl Capacity 0.4 oz
For Substance Type Oil Aerosol
Filter Type Coalescing
Number of Air Outlets 1
Maximum Operating Pressure 250 psi
Pressure Drop 3 psig
Seal Material Nitrile
Air Inlet Type NPT
System Location Air Line
Filter Element Material Borosilicate Cloth
Modular Connection Modular Connection
Series M08
Number of Air Inlets 1
For Fluid Type Oil
ISO Class 2
Drain Included Yes
Maximum Flow Rate 12.7 cfm
Maximum Operating Temperature 150 Degrees F
Gauge Included No

Description

Compressed Air Filter, Filter Type Coalescing, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 12.7 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 150 Degrees F, Overall Width 1 9/16 in, Overall Height 4 15/16 in, Drain Included Yes, Filter Bowl Material Aluminum, Drain Type Manual, Series M08, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 0.4 oz, Filter Bowl Guard Included Yes
