Shop All Compressor Air Filters
Wilkerson

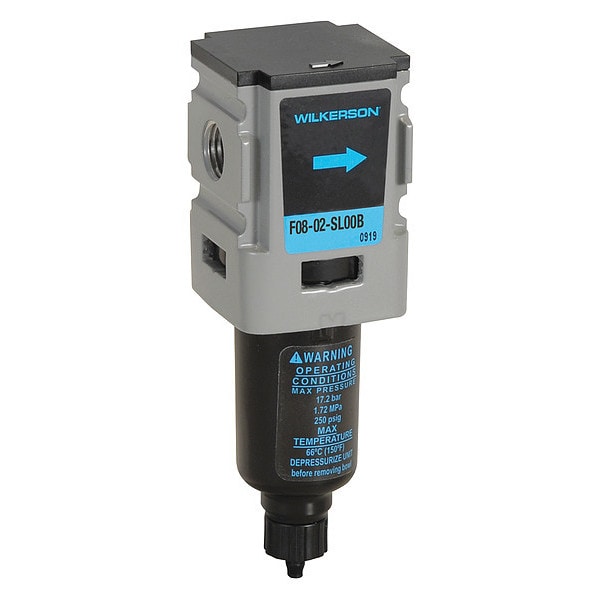

Compressed Air Filter, 5 micron Rating

original price: $44.17
31% off
new price: $30.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size - Air Treatment Subcompact
  • Overall Depth 1 9/16 in
  • Max. Temp. 150 Degrees F
  • For Removal Of Particles, Water
  • Max. Incoming Pressure - Air Treatment 250 psi
See all product information

Product Information

Dimensions

Size - Air Treatment Subcompact
Overall Depth 1 9/16 in
Connection Size - Air Treatment 1/4 in NPT
Overall Width 1 9/16 in
Bowl Size - Air Treatment 0.6 oz
Drain Port Size 3/16 in
Overall Height 4 15/16 in
Air Inlet Size 1/4 in
Air Outlet Size 1/4 in

Details

Item - Air Filters Compressed Air Filter
Max. Temp. 150 Degrees F
For Removal Of Particles, Water
Max. Incoming Pressure - Air Treatment 250 psi
Filter Rating 5 micron
Max. Flow - Air Treatment 70 cfm
Filter Rating - Air Treatment 5 micron
Bowl Material - Air Treatment Metal
Drain Type Manual
Item Compressed Air Filter
Weight 0.24 lb
Air Inlet Type NPT
Filter Element Material Sintered Polyethylene
Seal Material Nitrile
Number of Air Inlets 1
Body Material Aluminum
Filter Bowl Guard Included Yes
Drain Included Yes
Filter Type Particulate
For Fluid Type Water
For Substance Type Water, Particulate Contamination
System Location Air Line
Minimum Operating Temperature 14 Degrees F
Modular Connection Modular Connection
Air Outlet Type NPT
Number of Air Outlets 1
Pressure Drop 4.9 psig
Maximum Operating Pressure 250 psi
Sight Gauge Included No
Series F08
ISO Class 3
Filter Bowl Capacity 0.6 oz
Maximum Flow Rate 42 cfm
Filter Bowl Material Metal
Maximum Operating Temperature 150 Degrees F
Gauge Included No

Description

Compressed Air Filter, Filter Type Particulate, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 42 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 150 Degrees F, Overall Width 1 9/16 in, Overall Height 4 15/16 in, Drain Included Yes, Filter Bowl Material Metal, Drain Type Manual, Series F08, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 0.6 oz, Filter Bowl Guard Included Yes

Restrictions

  • WARNING: This product can expose you to chemicals including Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
