Shop All Filters & Regulators
No Product Image Available
Wilkerson

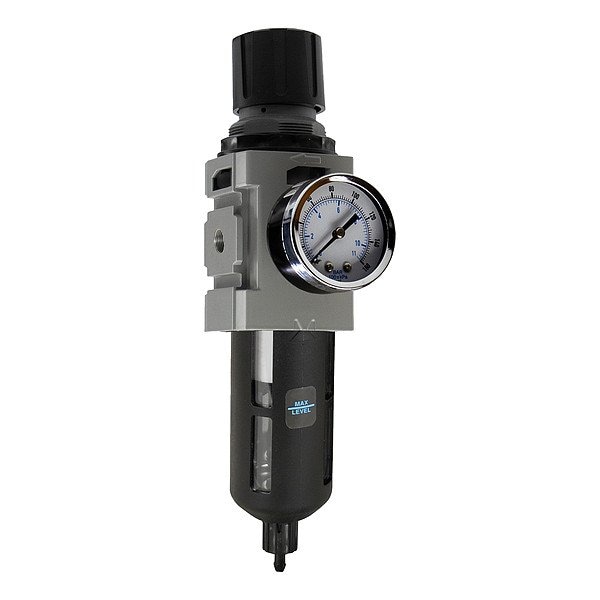

Filter/Regulator, Aluminum, Manual Drain

original price: $151.99
9% off
new price: $136.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Air Inlet Size 1/4 in
  • Filter Bowl Guard Included Yes
  • Maximum Flow Rate 148 scfm
  • Maximum Operating Pressure 150 psig
  • Maximum Operating Temperature 125 Degrees F
See all product information

Product Information

Dimensions

Air Inlet Size 1/4 in
Pressure Gauge Port Size 1/4 in
Air Outlet Size 1/4 in
Overall Width 3 11/16 in
Overall Height 10 5/16 in

Details

Filter Bowl Guard Included Yes
Maximum Flow Rate 148 scfm
Maximum Operating Pressure 150 psig
Maximum Operating Temperature 125 Degrees F
Adjustment Mechanism Knob
Body Material Aluminum
Filter Rating 5 micron
Modular Connection Modular Connection
Filter Type Particulate
Air Inlet Type NPT
For Substance Type Air
Filter Bowl Capacity 1.72 oz
Includes Bowl, Bowl Guard
ISO Class 6
Drain Part Compatibility GRP-96-634
Pressure Gauge Port Type NPT/BSPP-G
Standards ISO 8573-1: 1991 Class 3, ISO 8573-1: 2001 Class 6
Pressure Gauge Included Yes
Regulator Type Relieving
Minimum Flow Rate 0 scfm
Minimum Operating Pressure 36.3 psig
Air Outlet Type NPT
Series 18
Pressure Drop 14.5 psig
Item Filter/Regulator
Filter Bowl Material Plastic
Filter Bowl Guard Material Nylon
Minimum Regulated Pressure 0 psig
Weight 1.17 lb
Seal Material Nitrile
Maximum Flow @ 100 psi 120 scfm
Maximum Regulated Pressure 125 psig
Adjustment Mechanism Material Acetal
Filter Element Material Polyethylene
Minimum Operating Temperature -13 Degrees F
Drain Included Yes
Drain Type Manual

Description

Filter/Regulator, Filter Bowl Material Plastic, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 148 scfm, Filter Rating 5 micron, Filter Type Particulate, Maximum Operating Pressure 150 psig, Drain Type Manual, Pressure Gauge Included Yes, Body Material Aluminum, Overall Width 3 11/16 in, Series 18, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 1/4 in, Air Outlet Type NPT, Drain Included Yes, Drain Part Compatibility GRP-96-634

Restrictions

  • WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
