Shop WILKERSON

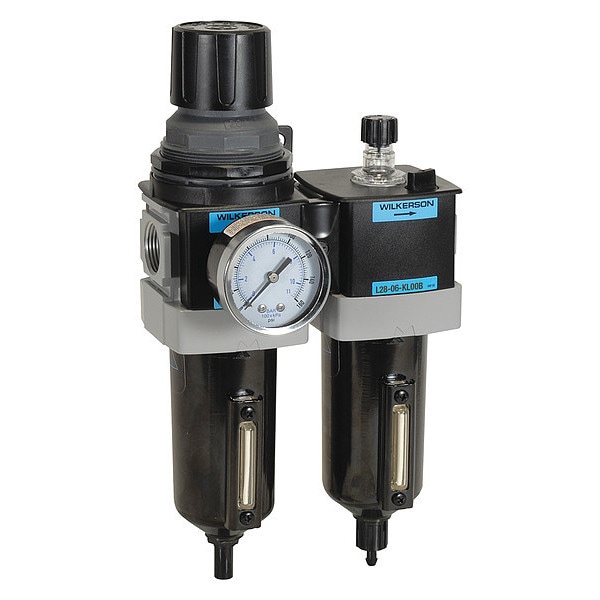

Filter/Regulator/Lubricator, 2 pcs.

  • Mfr # D28-03-FLG0B

  • Zoro # G4239704

product price:  $196.99
/ea
Free Shipping & Returns

Key Features

Includes
Modular T-Bracket/Joiner Assembly, Pressure Gauge, Sight Gauge
Overall Height
11 7/16 in
Drain Type
Manual
Filter Rating
5 micron
Connection Size - Air Treatment
3/8 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D28-03-FLG0B
Zoro #
G4239704
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
11 7/16 in
Connection Size - Air Treatment
3/8 in NPT
Overall Width
6 1/8 in
Gauge Port Size
1/4 in NPT
Size - Air Treatment
Standard
Bowl Size - Air Treatment
3.0 oz
Air Outlet Size
3/8 in
Air Inlet Size
3/8 in
Overall Depth
4 3/4 in
Pressure Gauge Port Size
1/4 in

Details

Item
Filter/Regulator/Lubricator
Includes
Modular T-Bracket/Joiner Assembly, Pressure Gauge, Sight Gauge
Drain Type
Manual
Filter Rating
5 micron
Oil Capacity
3 oz
Item - FRL
Filter/Regulator/Lubricator
Max. Flow - Air Treatment
112 cfm
Max. Temp.
150 Degrees F
Adjustment Range - Air Treatment
0 to 125 psi
Max. Pipe Run - Air Treatment
100 ft
Series
D28
Bowl Material - Air Treatment
Metal with Sight Gauge
ISO Class
3
Number of Pieces - Air Treatment
2
Body Material
Aluminum
Sight Dome Included
Yes
Drain Included
Yes
Max. Incoming Pressure - Air Treatment
250 psi
Filter Rating - Air Treatment
5 micron
For Removal Of
Particles, Water
Weight
4.65 lb
Standards
ISO
Lubricator Bowl Capacity
3 oz
For Substance Type
Air
Minimum Regulated Pressure
0 psig
Filter Bowl Guard Material
Aluminum
Pressure Gauge Port Type
NPT
Sight Gauge Included
Yes
Pressure Drop
14.5 psig
Filter Bowl Material
Aluminum
Lubricator Bowl Guard Material
Aluminum
Number of Air Inlets
1
Maximum Flow Rate
110 cfm
Regulator Type
Relieving
Number of Air Outlets
1
For Fluid Type
Oil
Air Inlet Type
NPT
Filter Bowl Capacity
3 oz
Maximum Operating Temperature
150 Degrees F
Adjustment Mechanism
Knob
Seal Material
Nitrile
Adjustment Mechanism Material
Acetal
Lubricator Bowl Material
Aluminum
Air Outlet Type
NPT
Modular Connection
Modular Connection
Pressure Gauge Included
Yes
Lubricator Type
Micro Mist
Maximum Regulated Pressure
125 psig
Maximum Operating Pressure
250 psi
Minimum Operating Temperature
-13 Degrees F
For Maximum Pipe Run
100 ft
Filter Element Material
Polyethylene

Description

Filter/Regulator/Lubricator, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 110 cfm, Maximum Operating Pressure 250 psi, Filter Rating 5 micron, Filter Bowl Material Aluminum, Filter Bowl Capacity 3 oz, Lubricator Bowl Capacity 3 oz, Drain Type Manual, Overall Width 6 1/8 in, Series D28, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 3/8 in, Air Outlet Type NPT, Body Material Aluminum, Drain Included Yes, Filter Bowl Guard Material Aluminum
