Wilkerson

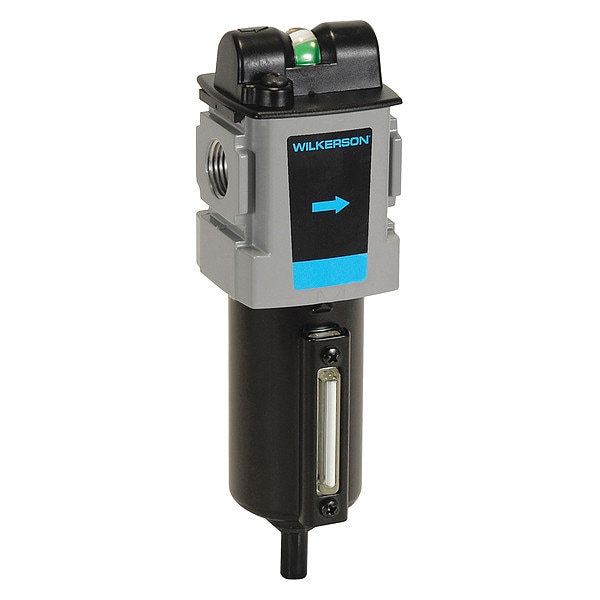

Oil Removal Filter, Compact Size

original price: $244.59
9% off
new price: $220.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Filter Rating - Air Treatment 0.01 micron
  • Connection Size - Air Treatment 1/2 in NPT
  • Max. Incoming Pressure - Air Treatment 250 psi
  • Max. Flow - Air Treatment 100 cfm
  • Bowl Material - Air Treatment Metal with Sight Glass
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 1/2 in NPT
Size - Air Treatment Compact
Bowl Size - Air Treatment 1.7 oz
Overall Width 2 3/8 in
Overall Height 8 1/8 in
Air Inlet Size 1/2 in
Overall Depth 2 3/8 in
Air Outlet Size 1/2 in

Details

Item - Air Filters Oil Removal Filter
Filter Rating - Air Treatment 0.01 micron
Max. Incoming Pressure - Air Treatment 250 psi
Max. Flow - Air Treatment 100 cfm
Bowl Material - Air Treatment Metal with Sight Glass
For Removal Of Aerosol, Mist, Oil Fog, Particles
Filter Rating 0.01 micron
Includes Differential Pressure Indicator
Housing Material Aluminum
Item Oil Removal Filter
Drain Type Automatic
Max. Temp. 250 Degrees F
Filter Media Borosilicate Cloth
Replaces Wilkerson M18-04-CH00-23
Air Outlet Type NPT
System Location Air Line
Filter Bowl Material Metal
Seal Material Polyamide
For Fluid Type Oil, Water
Number of Air Outlets 1
Series M18
Maximum Operating Temperature 150 Degrees F
Filter Element Material Borosilicate Cloth
Body Material Aluminum
Filter Bowl Capacity 1.7 oz
Drain Included Yes
Filter Bowl Guard Included Yes
Modular Connection Modular Connection
Number of Air Inlets 1
Filter Type Coalescing
Weight 0.71 lb
Maximum Operating Pressure 250 psi
Minimum Operating Temperature -13 Degrees F
Maximum Flow Rate 85 cfm
ISO Class 1
Sight Gauge Included Yes
Pressure Drop 3 psig
For Substance Type Oil Aerosols, Solid Particulate, Water
Air Inlet Type NPT
Gauge Included No

Description

Oil Removal Filter, Filter Type Coalescing, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 85 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 150 Degrees F, Overall Width 2 3/8 in, Overall Height 8 1/8 in, Drain Included Yes, Filter Bowl Material Metal, Drain Type Automatic, Series M18, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 1.7 oz, Filter Bowl Guard Included Yes, Filter Element Material Borosilicate Cloth

Restrictions

  • WARNING: This product can expose you to chemicals including Dichloromethane (Methylene chloride), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
