Wilkerson

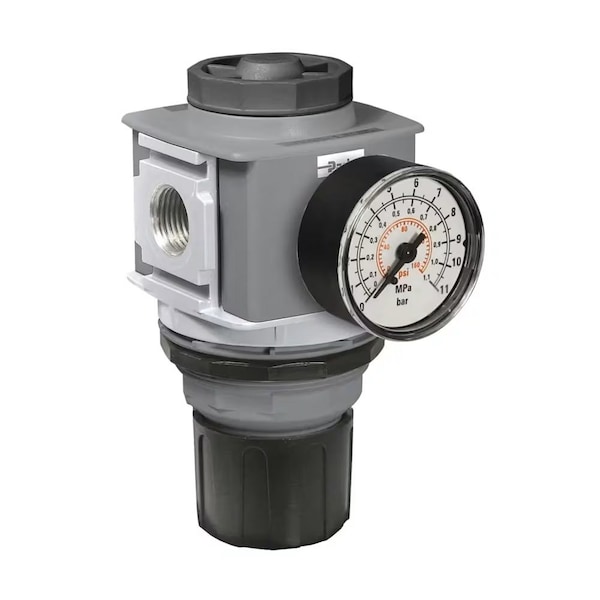

Regulator, Aluminum, 4 1/8" H, 1 9/16" W

product price: $53.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pressure Gauge Port Type NPT
  • Air Outlet Size 1/4 in
  • Adjustment Mechanism Material Acetal
  • Air Inlet Type NPT
  • Maximum Flow Rate 68 scfm
See all product information

Product Information

Dimensions

Air Outlet Size 1/4 in
Pressure Gauge Port Size 1/8 in
Air Inlet Size 1/4 in
Overall Depth 3 in
Overall Height 4 1/8 in
Overall Width 1 9/16 in

Details

Item Regulator
Pressure Gauge Port Type NPT
Adjustment Mechanism Material Acetal
Air Inlet Type NPT
Maximum Flow Rate 68 scfm
Modular Connection Modular Connection
Air Outlet Type NPT
Pressure Gauge Included Yes
Seal Material Nitrile
System Location Air Line
Maximum Operating Temperature 150 Degrees F
Pressure Drop 14.5 psig
Minimum Regulated Pressure 0 psig
Adjustment Mechanism Knob
Maximum Regulated Pressure 232 psig
Weight 0.37 lb
Body Material Aluminum
Maximum Operating Pressure 300 psig
Regulator Type Relieving
Series 08
Includes Gauge
Minimum Operating Temperature -4 Degrees F
Adjustment Location Bottom

Description

Regulator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 68 scfm, Maximum Operating Pressure 300 psig, Maximum Operating Temperature 150 Degrees F, Pressure Gauge Included Yes, Adjustment Mechanism Knob, Overall Width 1 9/16 in, Adjustment Location Bottom, System Location Air Line, Series 08, Adjustment Mechanism Material Acetal, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Aluminum, Includes Gauge, Maximum Regulated Pressure 232 psig
