Wilkerson

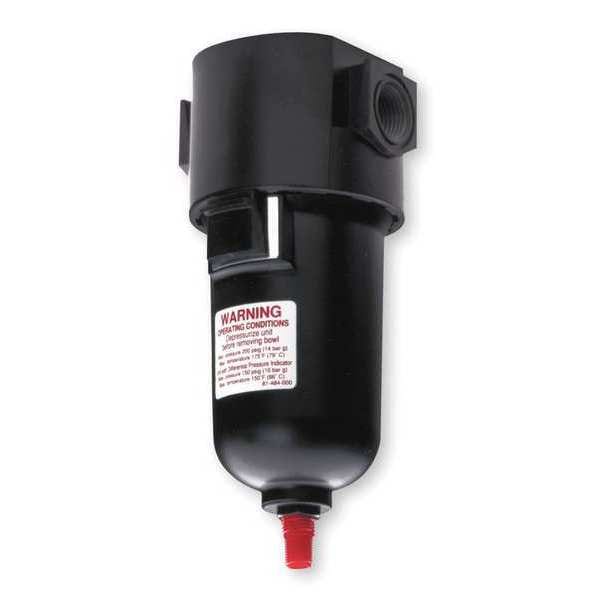

Separator, Condensate, 1/2 In NPT, 200 PSI

product price: $195.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • NPT Size 1/2 in
  • Float Type Automatic Internal Drain
  • Max. Flow (CFM) 50
  • Max. Pressure (PSI) 200 psi
  • Max. Temp. 150 Degrees F
See all product information

Product Information

Dimensions

NPT Size 1/2 in
Dia. 3.35
Height (In.) 7.34 in
Overall Width 3 3/8 in
Outside Diameter 3 7/20 in
Overall Length 7 5/16 in
Air Inlet Size 1/2 in
Overall Depth 7 5/16 in
Air Outlet Size 1/2 in
Element Size Category Universal

Details

Item Pneumatic Condensate Separator
Float Type Automatic Internal Drain
Max. Flow (CFM) 50
Max. Pressure (PSI) 200 psi
Max. Temp. 150 Degrees F
Housing Cast Zinc
Differential Pressure (PSI) 1
Auto Drain Stock Number Included
Max. Flow CFM @ 100 PSI 50
Body Material Cast Zinc
Drain Type Automatic
Air Outlet Type NPT
Bowl Guard Material Metal
Filtered Substance Water
Standards ISO 8573
Weight 2.6 lb
Air Inlet Type NPT
Maximum Flow Rate 50 cfm
For Substance Type Liquid
Maximum Flow @ 100 psi 50 cfm
Maximum Operating Pressure 200 psi
Maximum Operating Temperature 150 Degrees F
Type Automatic Internal Drain
Drain Included Yes
Minimum Operating Temperature 32 Degrees F
Seal Material Nitrile
Pressure Drop 1 psid

Description

Pneumatic Condensate Separator, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow @ 100 psi 50 cfm, Maximum Flow Rate 50 cfm, Maximum Operating Pressure 200 psi, Minimum Operating Temperature 32 Degrees F, Type Automatic Internal Drain, Outside Diameter 3 7/20 in, Overall Length 7 5/16 in, Weight 2.6 lb, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Cast Zinc, Bowl Guard Material Metal, Drain Included Yes, Drain Type Automatic, Element Size Category Universal
