Shop WILTON

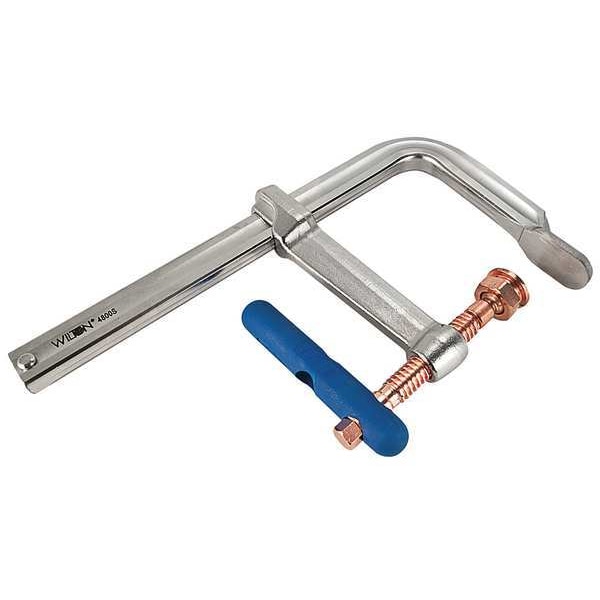

24 in Bar Clamp, Copper-Plated Steel Handle and 7 in Throat Depth

  • Mfr # 4800S-24C
  • Zoro # G5394541
product price:
$
281.99
/ea
Free Shipping & Returns

Key Features

Type
Heavy Duty F-Clamp
Handle Material
Copper-Plated Steel
Throat Depth (In.)
7 in
Includes
V-Groove Pad, Optional Serrated Pad
Nominal Clamping Pressure
4,880
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4800S-24C
Zoro #
G5394541
UPC #
731325228410
Country of Origin
Taiwan, Province of China

Dimensions

Throat Depth (In.)
7 in
Bar Thickness (In.)
25/32 in
Bar Width (In.)
1 9/16 in
Nominal Rail Size (In.)
1-9/16 x 25/32
Throat Depth
7 in
Bar Width
1 9/16 in
Throat Depth1
7 in
Bar Thickness
13/16 in

Details

Item
Bar Clamp
Type
Heavy Duty F-Clamp
Handle Material
Copper-Plated Steel
Max. Jaw Opening (In.)
24 in
Includes
V-Groove Pad, Optional Serrated Pad
Nominal Clamping Pressure
4,880
Bar Material
Extruded Steel
Application
Automotive, Metalworking, Plumbing, Welding, Woodworking
Opening (In.)
24 in
Pad Type
Replaceable, V-Groove
Swivel Type
Hex Head
Load Capacity (Lb.)
4,880 lb
Function
Clamp
Handle Style
Coated T
Spindle Material1
Copper
Spindle Finish1
Spatter-Resistant
Bar Type
Drop Forged
Jaw Pad Type
Swivel
Sliding Mechanism
Bar Slide
Clamping Force1
4,880 lb
Clamping Capacity1
24 in
Clamping Force
4,880 lb

Description

The WILTON - 4800S-24C is an F-clamp with rated high-load clamping capacity up to 4,880 lb. Intended for use in clamping workpieces during assembly, gluing, cutting, or machining, this clamp is crafted with a bar made from extruded steel. The bar type is drop-forged. It applies clamping pressure to hold workpieces during assembly, gluing, cutting, or machining, with a clamping force up to 4,880 lb.

Key Features of the WILTON - 4800S-24C Bar Clamp:

  • Bar material: Extruded steel.
  • Bar dimensions: Thickness 13/16 in; width 1 9/16 in.
  • Bar type: Drop-Forged.
  • Clamping capacity: 24 inches.
  • Maximum axial clamping force: 4,880 lb.
  • Handle: Copper-plated steel; T-style configuration.
  • Includes V-Groove Pad; Optional Serrated Pad.
  • Jaw pad type: Swivel.
  • Maximum load rating: 4,880 lb.
  • Jaw adjustment: Bar Slide mechanism.
